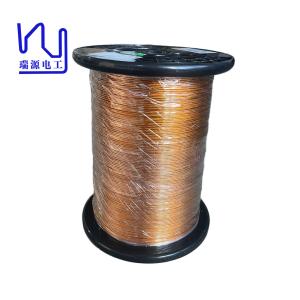

Class 180 385x0.06mm PI Taped Litz Wire Min.6000V

Name: Class 180 385x006mm PI Taped Litz Wire Min6000V
Brand: Rvyuan
Price: 1 USD

Brand Name : Rvyuan

Model Number : Taped litz wire

Certification : ISO9001/ISO14001/UL/SGS

Place of Origin : China

MOQ : 20kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Name : Class 180 385x0.06mm PI Taped Litz Wire Min.6000V litz wire

Diameter : 0.06mm

Conductor : Copper

Insulation : PI film

Rated Temperature : 180

Key word : Class 180 385x0.06mm PI Taped Litz Wire Min.6000V litz wire

No. of strands : 385

Contact Now

Class 180 385x0.06mm PI Taped Litz Wire Min.6000V litz wire

One of the main applications for our Taped Litz Wire is in transformers where high frequency performance is critical. Transformers are essential components in the distribution and conversion of electricity, and the efficiency of these devices can be greatly affected by the quality of the wires used. By using our high frequency litz wires, manufacturers can achieve lower losses and better thermal management, thereby improving the overall performance of the transformer.

Outgoing test of stranded wire	Spec: 0.06x385	Model: 2UEW-F-PI
Item	Standard	Test result
Outer conductor diameter(mm)	0.068-0.081	0.068-0.071
Conductor diameter(mm)	0.06±0.003	0.056-0.060
Overall diameter (mm)	Max.1.86	1.68-1.82
Pitch(mm)	29±5	17
Max resistance (Ω/m at20℃)	Max. 0.01809	0.01573
Breakdown voltage Mini (V)	6000	13700
NO. Of strands	385	77x5
Tape overlap%	Min.50	53
