Taped Litz Wire 0.05mmx600 PTFE Insulated Copper Wire

Name: Taped Litz Wire 005mmx600 PTFE Insulated Copper Wire
Brand: Rvyuan
Price: 1 USD

Brand Name : Rvyuan

Model Number : Taped litz wire

Certification : ISO9001/ISO14001/UL/SGS

Place of Origin : China

MOQ : 20kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Name : Taped Litz Wire 0.05mmx600 PTFE Insulated Copper Wire

Diameter : 0.05mm

Conductor : Copper

Insulation : Ptfe film

Rated Temperature : 155

Key word : Taped Litz Wire 0.05mmx600 PTFE Insulated Copper Wire

No. of strands : 600

Contact Now

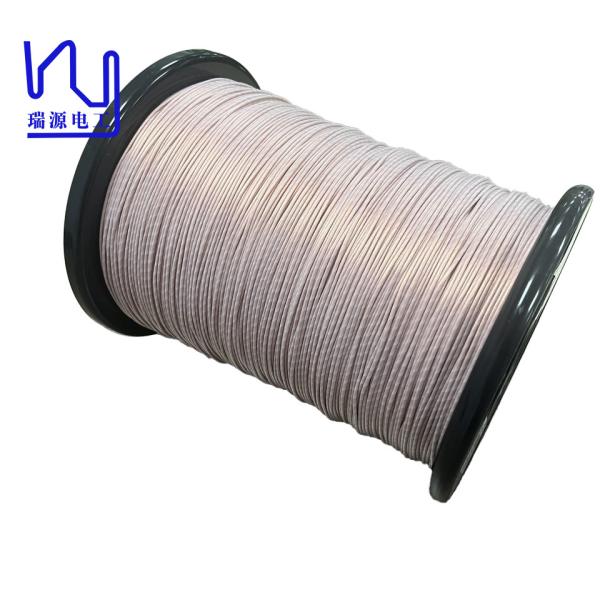

Taped Litz Wire 0.05mmx600 PTFE Insulated Copper Wire

This is a fully customized taped Litz wire, consisting of 600 strands of enameled wire stranded together with a single wire diameter of only 0.05 mm.

The outstanding features of this taped litz wire is its unique outer film. The taped litz wires are typically wrapped with a polyesterimide (PI) film, our products are specifically designed with a PTFE (Teflon) film. PTFE films have excellent insulating properties, making them ideal for applications where thermal and electrical properties are critical. This customization allows us to meet our customers' specific needs, ensuring they receive a product that perfectly matches their operational requirements.

Item No	Single wire diameter mm	Conductor diameter mm	O.D. mm	Resistance Ω /m	Dielectric strength v	Pitch (mm)	No. of strand	Tape	winding
Item No	Single wire diameter mm	Conductor diameter mm	O.D. mm	Resistance Ω /m	Dielectric strength v	Pitch (mm)	No. of strand	verlap %	winding
Tech requirement	0.058-0.069	0.05±0.003	≤2.67	≤0.01707	≥6000	37±3	600	≥50	No crack
1	0.058-0.061	0.048-0.050	2.07-2.24	0.0150	14600	37	600	54	OK
2	0.058-0.061	0.048-0.050	2.05-2.23	0.0150	14200	37	600	53	OK
3	0.058-0.060	0.048-0.050	2.0-2.20	0.0151	14500	37	600	55	OK
4	0.058-0.060	0.048-0.050	2.05-2.23.	0.0152	15000	37	600	54	OK
5	0.058-0.060	0.048-0.050	2.04-2.19	0.0153	14900	37	600	55	OK
6	0.058-0.061	0.048-0.050	2.00-2.17	0.0149	14700	37	600	54	OK
7	0.058-0.062	0.048-0.050	1.99-2.20	0.0150	14200	37	600	53	OK
