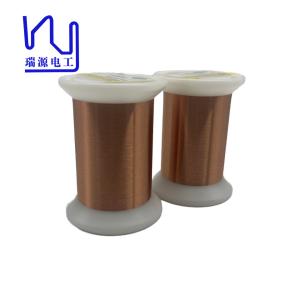

High Quality Fine Round 0.019 Mm Enamelled Copper Coil Winding Wire

Name: High Quality Fine Round 0019 Mm Enamelled Copper Coil Winding Wire
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : 0.019mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 10kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : High Quality Fine Round 0.019 mm Enamelled Copper Coil Winding Wire

Thermal rating : 155

Insulation Material : Polyurethane

Diameter : 0.019mm

Conductor material : Copper

Key word : High Quality Fine Round 0.019 mm Enamelled Copper Coil Winding Wire

Type : High Quality Fine Round 0.019 mm Enamelled Copper Coil Winding Wire

Contact Now

High Quality Fine Round 0.019 mm Enamelled Copper Coil Winding Wire

One of the outstanding advantages of our ultra-fine enameled copper wires is their weldability.

This feature allows for seamless integration into a variety of electronic components, thereby promoting efficient manufacturing processes. Whether you're working on high-frequency applications or compact equipment, the ability to easily solder this ultra-fine enameled copper wire ensures you can achieve the precision and reliability you need for optimal performance.


			Nominal diameter(mm)
			0.019

			Overall diameter

			Grade 1

			Min(mm)
			0.021

			Max(mm)
			0.023

			Grade 2

			Min(mm)
			0.024

			Max(mm)
			0.026

			Grade 3

			Min(mm)
			0.027

			Max(mm)
			0.028

			Resistance at 20℃

			Nom(Ohm/m)
			60.29

			Min(Ohm/m)
			54.26

			Max(Ohm/m)
			66.32

			Breakdown voltage

			Grade 1
			Min.(v)
			115

			Grade 2
			Min.(v)
			240

			Grade 3
			Min.(v)
			380

Product Tags:

High Quality Fine Round 0.019 Mm Enamelled Copper Coil Winding Wire Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Tianjin Ruiyuan Electric Material Co,.Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

High Quality Fine Round 0.019 Mm Enamelled Copper Coil Winding Wire

High Quality Fine Round 0.019 Mm Enamelled Copper Coil Winding Wire

Fine round copper wire

0.019 Mm round copper wire

Coil Enamelled round copper wire

High Quality Fine Round 0.019 Mm Enamelled Copper Coil Winding Wire Images

Nominal diameter(mm)	0.019
Overall diameter	Grade 1	Min(mm)	0.021
	Grade 1	Max(mm)	0.023
	Grade 2	Min(mm)	0.024
	Grade 2	Max(mm)	0.026
	Grade 3	Min(mm)	0.027
	Grade 3	Max(mm)	0.028
Resistance at 20℃	Nom(Ohm/m)	60.29
	Min(Ohm/m)	54.26
	Max(Ohm/m)	66.32
Breakdown voltage	Grade 1	Min.(v)	115
	Grade 2	Min.(v)	240
	Grade 3	Min.(v)	380
