Brand Name : Rvyuan
Model Number : litz wire
Certification : ISO9001/ISO14001/UL/SGS
Place of Origin : China
MOQ : 20kg
Price : Negotiation
Payment Terms : Negotiation
Supply Ability : Satisfy your demand
Delivery Time : 2-15 workding days
Packaging Details : Spool with carton
Name : 2UEW-F Litz Wire 0.32mmx32 Enameled Copper Stranded Wire
Diameter : 0.32mm
Conductor : Copper
Key word : 2UEW-F Litz Wire 0.32mmx32 Enameled Copper Stranded Wire
No. of strands : 32
Thermal rating : 155
2UEW-F Litz Wire 0.32mmx32 Enameled Copper Stranded Wire
In the ever-growing field of electrical engineering, the need for high-performance components is of paramount importance. This special stranded wires stand out with a single wire diameter of 0.32 mm and are made of 32 strands of enameled copper wire.
Item | Out conductor diameter mm | Conductor diameter mm | Overall diameter mm | Pitch mm |
Resistance Ω /m(20℃) |
Breakdown voltage V |
Solderability 390±5 ℃10S
|
Tech requirement | 0.335-0.357 | 0.32 | 2.50 | 33 | 0.006963 | 2000 | Surface smooth, no crack |
± | 0.005 | Max. | 7 | max | Min | ||
1 | 0.344-0.347 | 0.317-0.32 | 2.28 | √ | 0.006786 | 4400 | √ |
![]() |

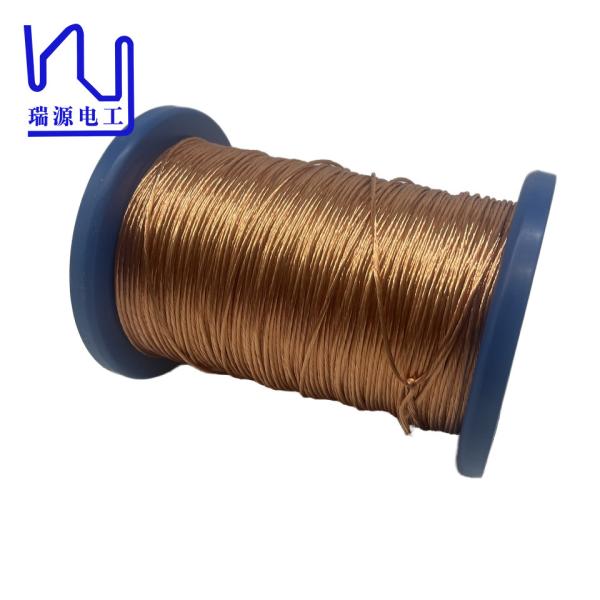

2UEW-F Litz Wire 0.32mmx32 Enameled Copper Stranded Wire Images |
