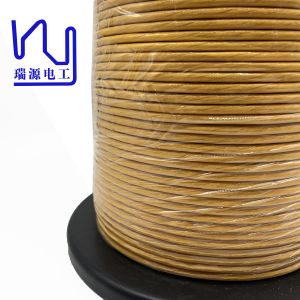

ETFE Triple Insulated Litz Wire Insulated Stranding Copper Wire

Brand Name : Ruiyuan

Model Number : 0.08x1700

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 1000 meter

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 100000/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : FTIW 0.08mm Triple Insulated Wire Litz Wire CopperETFE Triple Insulated Litz Wire Insulated Stranding Copper Wire

Thermal rating : 155

Insulation Material : Teflon

Diameter : 0.08mm

Conductor material : Copper

Key word : ETFE Triple Insulated Litz Wire Insulated Stranding Copper Wire

Strands : 1700

Contact Now

ETFE Triple Insulated Litz Wire Insulated Stranding Copper Wire

This triple insulated litz wire has a single wire diameter of 0.08mm and consists of 1700 strands, all wrapped in ETFE insulation. But what exactly is ETFE insulation? What are its advantages? ETFE, or ethylene tetrafluoroethylene, is a fluoropolymer with excellent thermal, mechanical and chemical properties. Its high dielectric strength and ability to withstand harsh environments make it ideal for demanding applications.

FTIW-F-Y 0.08*1700

Specification (nominal diameter of conductor * number of

strands)

 Single line [mm] LITZ WIRE

Conductor tolerance

Min.paint film

thickness

Finished outside diameter

molding

Twist [MM]

0.08*1700

0.08±0.003

0.003

0.086-0.097

 0.08*68 S1=45±3
0.08*68*5 S2=45±3
0.08*68*5*5 S3=66±5

0.08*1700 Finished product line

Temperature resistance grade ℃

Straight weldability [s] (430℃±10℃)

Max.

resistance [Ω/m]

(20℃)

Max.

Withstand voltage AC to stranded wire (Leakage current 5mA)

Min.

Thickness of single insulating layer(mm)

Max.finished outside diameter[mm]

155

6

2.29

6000

0.11±0.01

4.80
