Polyurethane Enamel Coated Copper Wire Solderable Magnet

Name: Polyurethane Enamel Coated Copper Wire Solderable Magnet
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : 0.117mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 10kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : Polyurethane Solderable Enameled Copper Wire Magnet Wire

Thermal rating : 155

Insulation Material : Polyurethane

Diameter : 0.117mm

Conductor material : Copper

Key word : Polyurethane Solderable Enameled Copper Wire Magnet Wire

Contact Now

Polyurethane Solderable Enameled Copper Wire Magnet Wire

This type of wire is widely used in the construction of transformers, electric motors, solenoids, and various other electromagnetic devices. Its ability to efficiently conduct electricity while providing excellent insulation makes it an integral part of the production of high-quality electronic components. Additionally, the solderable nature of the wire simplifies the assembly process, making it a preferred choice for manufacturers in the electronics industry.

Product	Polyurethane Solderable Enameled Copper Wire Magnet Wire
Key word	Polyurethane Solderable Enameled Copper Wire Magnet Wire
Characteristics	Standard
Appearance	Smooth,Equality
Conductor diameter(mm)	0. 117±0.001
Insulation Thickness( mm)	Min. 0.002
Overall diameter(mm)	0.121-0.123
Conductor Resistance(Ω/m,20℃)	1.55~ 1.60
Electric conductivity(%)	Min.95
Elongation(%)	Min. 15
Density(g/cm3)	8.89
Breakdown Voltage(V)	Min. 300
Breaking force (cn)	Min. 32
Tensile strength (N/mm² )	Min. 270
Solderability(S)	Max.2S

Product Tags:

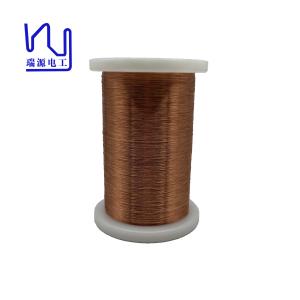

Polyurethane Enamel Coated Copper Wire Solderable Magnet Images
