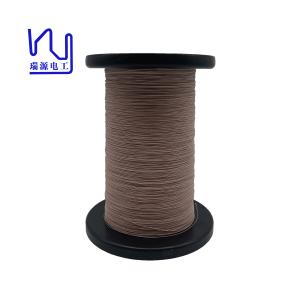

Custom Ustc Litz Magnet Wire 38 Awg 0.1mm 0.08mm 0.05mm Silk Covered For Audio

Name: Custom Ustc Litz Magnet Wire 38 Awg 01mm 008mm 005mm Silk Covered For Audio
Brand: Rvyuan
Price: 1 USD

Brand Name : Rvyuan

Model Number : Copper litz wire

Certification : ISO9001/ISO14001/UL/SGS

Place of Origin : China

MOQ : 10kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Satisfy your demand

Delivery Time : 10 workding days

Packaging Details : Spool with carton

Name : Custom USTC 0.1mm 0.08mm 0.05mm Silk Covered Litz Wire For Audio

Diameter : 0.1mm/38AWG

Standard : GB/T5013.3/IEC60245-3:1994

Conductor : Copper

Insulation : Enamel

Rated Temperature : 155/180

Key word : Custom USTC 0.1mm 0.08mm 0.05mm Silk Covered Litz Wire For Audio

No. of strands : 16

Contact Now

Custom USTC 0.1mm 0.08mm 0.05mm Silk Covered Litz Wire For Audio

Nylon serving copper litz wire has important applications in the field of audio equipment. It is made of multiple strands of small copper wires twisted together and covered with a wear-resistant nylon coating, which not only protects the copper wires but also reduces electromagnetic interference. This design allows the audio signal to maintain high quality and stability during transmission, improving the performance of the audio equipment. This material is usually used to manufacture high-fidelity audio cables and internal wiring of speakers. It can effectively reduce resistance and loss during signal transmission and improve the sound quality and signal transmission stability of audio equipment. Whether it's a professional recording studio, audio amplifier or hi-fi sound system, nylon serving copper litz wire is an essential component in improving audio performance and sound quality.

Test report: USTC-F 0.1mm*16
Item	Technical standard	Test result
Appearance	Smooth, no No slags	Good
Conductor diameter (mm)	0.100±.0003	0.100
Outer conductor diameter(mm)	0.110-0.125	0.114
No. Of strands	16	16
Stranding direction	S	Good
Pinhole	6m faults≤ strands*2	1
Conductor resistance	≤153.28 Ω/km(20℃)	136
Breakdown voltage	≥ 1.1KV	3.7
Solderability 390±5℃	Smooth, no pinhole, no slags	Good
