Brand Name : Ruiyuan
Model Number : USTCF litz wire
Place of Origin : China
Certification : UL/ISO9001/ISO14001/RoHS/Reach
MOQ : 10kg
Price : Negotiation
Packaging Details : Carton
Delivery Time : 7 days
Payment Terms : TT/Paypal
Supply Ability : 100kg/week
Number Of Strands : 60
Conductor Material : Copper
Theraml grade : 155
Single Wire : 0.05mm
Key word : Ustc Litz Wire with 1300V Breakdown voltage 0.05mm *60 Copper Conductor Material
Jacket : Nylon/polyester/real Silk
Product name : Ustc Litz Wire with 1300V Breakdown voltage 0.05mm *60 Copper Conductor Material
Breakdown voltage : 1300V

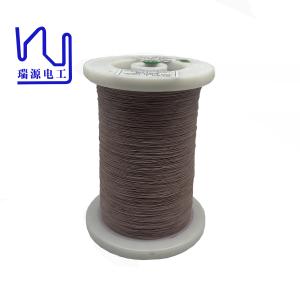

Ustc Litz Wire with 1300V Breakdown voltage 0.05mm *60 Copper Conductor Material
In the industrial sector, silk covered litz wire has proven to be a valuable asset due to its high frequency effect. The wire's design contains multiple individually insulated strands, which reduces the skin effect and ensures that current is evenly distributed throughout the wire. This property makes silk covered litz wire an excellent choice for applications requiring high-frequency signals, such as inductors, transformers and other electronic components used in industrial machinery and equipment.
Item |
Technical requests |
Test value 1 |
Test value 2 |
Conductor Diameter (mm) |
0.05±0.003 |
0.048 |
0.050 |
Single wire diameter (mm) |
0.060-0.086 |
0.063 |
0.065 |
O.D. (mm) |
Max. 0.69 |
0.57 |
0.60 |
Resistance Ω/m (20℃) |
Max. 0.1707 |
0.1503 |
0.1513 |
Breakdown Voltage V |
1300 |
3300 |
3200 |
Pitch mm |
27 ± 5 |
√ |
√ |
No. of strands |
60 |
√ |
√ |
![]() |
