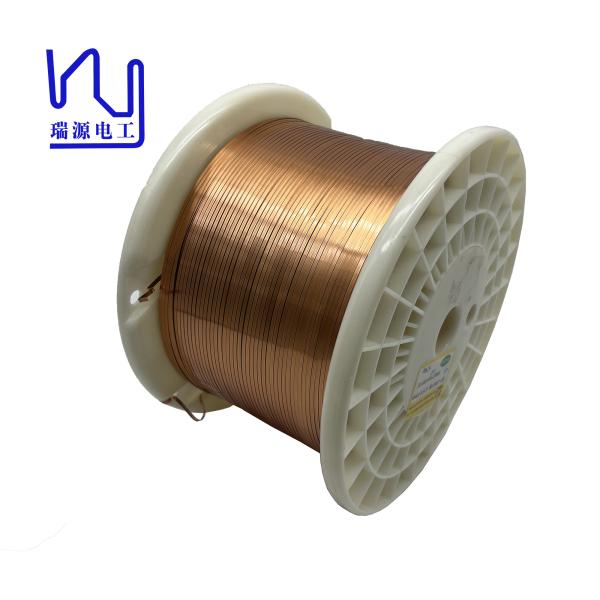

Flat Self Bonding Copper Wire Insulated 220 Grade 0.15mm*2.0mm

Brand Name : Ruiyuan

Model Number : 2.0mm*0.15mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 10kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : Flat Copper Wire Manufacturer Insulated 220 Grade 0.15mm*2.0mm

Thermal rating : 220

Insulation Material : Amide imide

Width : 2.0mm

Thickness : 0.15mm

Conductor material : Copper

Key word : Flat Copper Wire Manufacturer Insulated 220 Grade 0.15mm*2.0mm

Contact Now

Flat Copper Wire Manufacturer Insulated 220 Grade 0.15mm*2.0mm

In the field of electric motors, enameled copper flat wires are widely used in various types of electric motors. Whether it is household appliances or industrial equipment, efficient and reliable electrical connections are required.

Enameled copper flat wires can not only withstand high current loads, but also maintain stable performance in high-temperature environments, thereby improving the efficiency and life of the equipment.

Product name

Flat Copper Wire Manufacturer Insulated 220 Grade 0.15mm*2.0mm

Key word

Flat Copper Wire Manufacturer Insulated 220 Grade 0.15mm*2.0mm
Characteristics Standard Test Result
Appearance Smooth Equality ok
Conductor Diameter Width 2.00 ±0.060 1.998
Thickness 0.15 ±0.009 0.148
Min.Thickness of Insulation Width 0.010 0.041
Thickness 0.010 0.037
Max. Overall Diameter Width 2.050 2.039
Thickness 0.190 0.185
Pinhole Max. 3hole/m 0
Elongation Min. 30 % 41
Flexibility and Adherence No crack No crack
Conductor Resistance (Ω/km at 20℃) Max 64.03 49.47
Breakdown Voltage Min. 0.70kv 1.50
Heat shock No Crack ok

Flat Self Bonding Copper Wire Insulated 220 Grade 0.15mm*2.0mm
