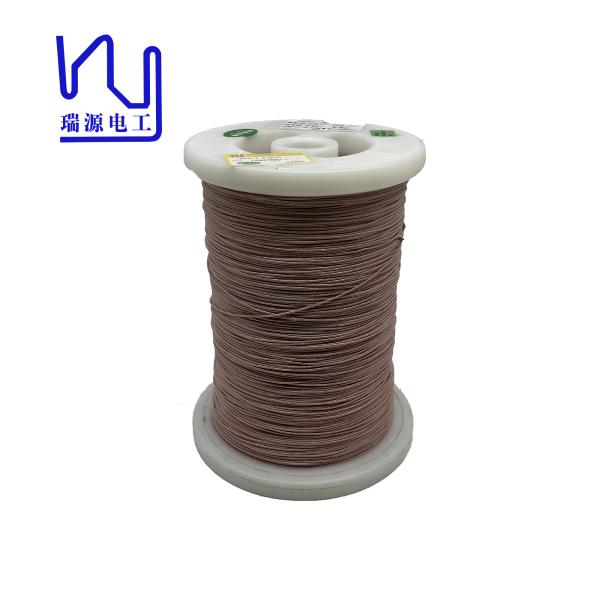

Ustc Awg38 Copper Litz Wire 0.1mm Strands Twited White Silk Covered Enameled

Name: Ustc Awg38 Copper Litz Wire 01mm Strands Twited White Silk Covered Enameled
Brand: Rvyuan
Price: 1 USD

Brand Name : Rvyuan

Model Number : Copper litz wire

Certification : ISO9001/ISO14001/UL/SGS

Place of Origin : China

MOQ : 10kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Name : USTC AWG38 0.1mm Strands Twited White Silk Covered Enameled Copper Litz Wire

Diameter : 0.1mm

Standard : GB/T5013.3/IEC60245-3:1994

Conductor : Copper

Insulation : Enamel

Rated Temperature : 155/180

Key word : USTC AWG38 0.1mm Strands Twited White Silk Covered Enameled Copper Litz Wire

No. of strands : 600

Contact Now

USTC AWG38 0.1mm Strands Twited White Silk Covered Enameled Copper Litz Wire

Signal transmission is another area where Nylon served Litz Wire excels. Whether for data transmission or telecommunications, highly conductive copper strands combined with the superior insulating qualities of nylon yarn provide clear and reliable signal transmission, minimizing interference and maintaining signal integrity.

Description Conductor diameter*Strand number		2UDTC- F 0. 10*600
Single wire	Conductor diameter(mm)	0 . 100
	Conductor diameter tolerance (mm)	±0.003
	Minimal insulation thickness(mm)	0 .005
	Maximal overall diameter (mm)	0 . 125
	Thermal Class(℃)	155
Strand Composition	Strand number (strands)	100*6
	Pitch(mm)	65± 10
	Stranding direction	S
Insulation layer	Category	Nylon
	UL	/
	Material specs(mm* mm or D)	300+300
	Times of Wrapping	2
	Overlap(%) or thickness(mm) , mini	0.05
	Wrapping direction	Z ,S
Characteristics	Max O. D (mm)	3 .78
	Max pin holes 个/6 m	98
	Max resistance ( Ω/Km at20℃)	3.968
	Mini breakdown voltage (V )	1100

Key word

UL Certified 0.1mm*600 Strands USTC Silk Covered Litz Copper Wire

Key word

USTC AWG38 0.1mm Strands Twited White Silk Covered Enameled Copper Litz Wire
