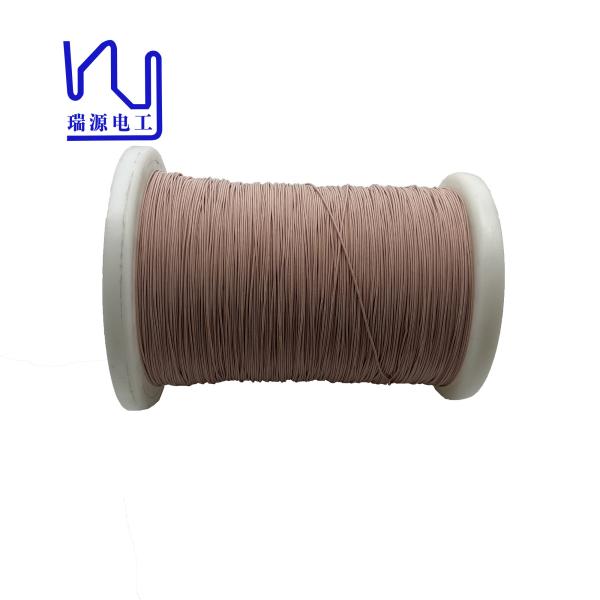

Ul Certified Ustc Litz Wire 0.1mm*600 Strands Silk Covered Copper

Name: Ul Certified Ustc Litz Wire 01mm600 Strands Silk Covered Copper
Brand: Rvyuan
Price: 1 USD

Brand Name : Rvyuan

Model Number : Copper litz wire

Certification : ISO9001/ISO14001/UL/SGS

Place of Origin : China

MOQ : 10kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Name : UL Certified 0.1mm*600 Strands USTC Silk Covered Litz Copper Wire

Diameter : 0.1mm

Standard : GB/T5013.3/IEC60245-3:1994

Conductor : Copper

Insulation : Enamel

Rated Temperature : 155/180

Key word : UL Certified 0.1mm*600 Strands USTC Silk Covered Litz Copper Wire

No. of strands : 600

Contact Now

UL Certified 0.1mm*600 Strands USTC Silk Covered Litz Copper Wire

As the demand for new energy vehicles such as electric vehicles and hybrid vehicles surges, nylon copper litz wire plays a vital role in providing efficient and reliable power to different vehicle components.

From battery systems to electric motors and charging infrastructure, our custom nylon copper litz wire can be customized to specific requirements such as single wire diameter, strand count or resistance.

We are committed to providing excellent customization services, allowing small batch production to meet our customers' unique needs.

Description Conductor diameter*Strand number		2UDTC- F 0. 10*600
Single wire	Conductor diameter(mm)	0 . 100
	Conductor diameter tolerance (mm)	±0.003
	Minimal insulation thickness(mm)	0 .005
	Maximal overall diameter (mm)	0 . 125
	Thermal Class(℃)	155
Strand Composition	Strand number (strands)	100*6
	Pitch(mm)	65± 10
	Stranding direction	S
Insulation layer	Category	Nylon
	UL	/
	Material specs(mm* mm or D)	300+300
	Times of Wrapping	2
	Overlap(%) or thickness(mm) , mini	0.05
	Wrapping direction	Z ,S
Characteristics	Max O. D (mm)	3 .78
	Max pin holes 个/6 m	98
	Max resistance ( Ω/Km at20℃)	3.968
	Mini breakdown voltage (V )	1100

Key word

UL Certified 0.1mm*600 Strands USTC Silk Covered Litz Copper Wire

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
