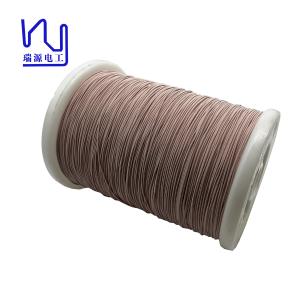

Ul Certification Ustc Litz Wire 44 Awg / 0.05mm Hf Silk Covered

Name: Ul Certification Ustc Litz Wire 44 Awg 005mm Hf Silk Covered
Brand: Rvyuan
Price: 1 USD

Brand Name : Rvyuan

Model Number : Copper litz wire

Certification : ISO9001/ISO14001/UL/SGS

Place of Origin : China

MOQ : 10kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Name : UL Certification 44AWG/0.05mm USTC Wire HF Silk Covered Litz Wire

Diameter : 0.05mm

Standard : GB/T5013.3/IEC60245-3:1994

Conductor : Copper

Insulation : Enamel

Rated Temperature : 155/180

Key word : UL Certification 44AWG/0.05mm USTC Wire HF Silk Covered Litz Wire

No. of strands : 330

Contact Now

UL Certification 44AWG/0.05mm USTC Wire HF Silk Covered Litz Wire

Due to its characteristics of ultra-fine enameled copper wire, the litz wire is widely used in the internal wiring and circuit connections of precision instruments.

The high flexibility and tensile strength of the litz wire allows it to easily adapt to different environments and wiring requirements.

The wear-resistant and cut-resistant performance of the covering layer protects the safety and reliability of the wires and ensures the normal operation of the equipment.

Description Conductor diameter*Strand number		1USTC-F 0.05*330
Single wire	Conductor diameter(mm)	0.050
	Conductor diameter tolerance (mm)	±0.003
	Minimal insulation thickness(mm)	0.005
	Maximal overall diameter (mm)	0.086
	Thermal Class (℃)	155
Strand Composition	Strand number	66*5
	Pitch(mm)	29±5
	Stranding direction	Z
Insulation layer	Category	Polyester yarn
	UL	/
	Material specs(mm*mm or D)	300
	Times of Wrapping	1
	Overlap(%) or thickness(mm),mini	0.02
	Wrapping direction	S
Characteristics	Max O. D (mm)	1.55
	Max pin holes faults/6m	36
	Max resistance (Ω/Km at20℃)	31.03
	Mini breakdown voltage (V )	1300
	Meter per kilogram	166

Key word

UL Certification 44AWG/0.05mm USTC Wire HF Silk Covered Litz Wire
