20 - 56 Awg Enamel Covered Wire Varnished Blue

Name: 20 56 Awg Enamel Covered Wire Varnished Blue
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : 0.06mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 10kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : 20 - 56 AWG Varnished Copper Wire / Blue Copper Enameled Wire

Thermal rating : 155

Insulation Material : Polyurethane

Diameter : 0.06mm

Conductor material : Copper

Key word : 20 - 56 AWG Varnished Copper Wire / Blue Copper Enameled Wire

Type : 20 - 56 AWG Varnished Copper Wire / Blue Copper Enameled Wire

Contact Now

20 - 56 AWG Varnished Copper Wire / Blue Copper Enameled Wire

The enameled copper wire is widely used in electronic equipment manufacturing, electrical products, communication systems, automation equipment and other fields. They can be used for wiring, winding coils, electric heating products, inductors, transformers and other circuit components.

Test Items	Requirements		Test Data
Test Items	Requirements		1^st Sample	2^nd Sample	3^rd Sample
Appearance	Smooth & Clean		OK	OK	OK
Conductor Diameter	0.060mm ±	0.002mm	0.0600	0.0600	0.0600
Thickness of Insulation	≥ 0.008mm		0.0120	0.0120	0.0110
Overall Diameter	≤ 0.074mm		0.0720	0.0720	0.0710
DC Resistance	≤6.415 Ω/m		6.123	6.116	6.108
Elongation	≥ 14%		21.7	20.3	22.6
Breakdown Voltage	≥500V		1725	1636	1863
Pin Hole	≤ 5 faults/5m		0	0	0
Adherence	No cracks visible		OK	OK	OK
Cut-through	200℃ 2min No breakdown		OK	OK	OK
Heat Shock	175±5℃/30min No cracks		OK	OK	OK
Solderability	390± 5℃ 2 Sec No slags		OK	OK	OK
Insulation Continuity	≤ 60(faults)/30m		0	0	0

 	 			Name
 			20 - 56 AWG Varnished Copper Wire / Blue Copper Enameled Wire

 			Key word
 			20 - 56 AWG Varnished Copper Wire / Blue Copper Enameled Wire

 			Insulationh
 			Enamel

 			Thermal rating
 			155

 			Diameter of the enameled copper wire
 			0.06mm



Product Tags:

varnished blue enamel covered wire

56 awg enamel covered wire

enamel covered magnet wire 20 awg

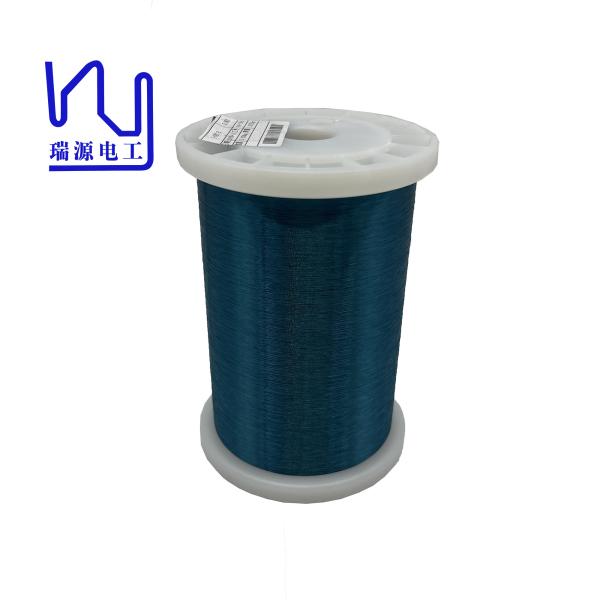

20 - 56 Awg Enamel Covered Wire Varnished Blue Images
