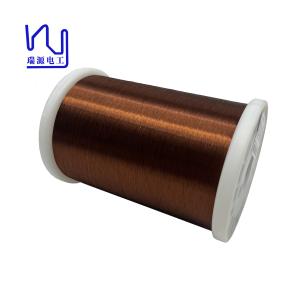

2uew155 40 Awg Enamel Coil Wire 0.08mm Brown Color Motor Winding Insulated Solid

Name: 2uew155 40 Awg Enamel Coil Wire 008mm Brown Color Motor Winding Insulated Solid
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : 0.08mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 10kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : 2UEW155 40 AWG 0.08mm Brown Color Motor Winding Insulated Copper Wire Solid

Thermal rating : 155

Insulation Material : Polyurethane

Diameter : 0.08mm

Conductor material : Copper

Key word : 2UEW155 40 AWG 0.08mm Brown Color Motor Winding Insulated Copper Wire Solid

Type : 2UEW155 40 AWG 0.08mm Brown Color Motor Winding Insulated Copper Wire Solid

Contact Now

2UEW155 40 AWG 0.08mm Brown Color Motor Winding Insulated Copper Wire Solid

40 AWG 0.08mm brown and other custom color enameled wire for wide application in industrial fields.

Our 40 AWG 0.08mm enameled copper wire is a trustworthy choice because it is not only high quality, performs well, but is also available in a variety of custom colors.

Characteristics	Technical requests	Test Results
		Sample 1	Sample 2
Surface	Good	OK	OK
Bare Wire Diameter	0.080±0.002	0.45	0.45
Coating Thickness	≥ 0.008 mm	0.011	0.012
Overall Diameter	≤ 0.094 mm	0.091	0.092
Conductor Resistance	≤ 3.608 Ω/m	3.456	3.443
Elongation	≥ 16 %	19	19
Breakdown Voltage	≥ 425 V	1578	1496
Pinhole Test	≤ 5 holes/5m	0	0
Continuity	≤ 40 holes/30m	0	0
Test Items	Technical Requests	Results
Adhesive	Coating layer is good	OK
Cut-through	200℃ 2minsno breakdown	OK
Heat Shock	175±5℃/30minno crack	OK
Solder Ability	390± 5℃ 2SecNo blister, no expansion, no shed	OK

 	 			Name
 			AWG 44 Gauge Class 155 Super Thin Enamled Copper Wire For Watch Coil

 			Key word
 			AWG 44 Gauge Class 155 Super Thin Enamled Copper Wire For Watch Coil

 			Insulationh
 			Enamel

 			Thermal rating
 			155

 			Diameter of the enameled copper wire
 			0.05mm



Product Tags:

enamel coated magnet wire 40 awg

enamel coil wire 0.08mm

40 awg copper wire with enamel
