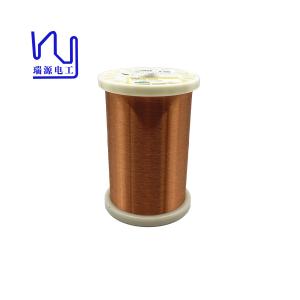

Solderable Polyurethane Enamel Coated Magnet Wire 0.025mm 0.03mm Self Bonding

Product Categories
Tianjin Ruiyuan Electric Material Co,.Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Solderable Polyurethane Enamel Coated Magnet Wire 0.025mm 0.03mm Self Bonding

Brand Name : Ruiyuan

Model Number : 0.03mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 5 kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : Solderable Polyurethane 0.025mm 0.03mm Self Bonding Enameled Copper Wire

Thermal rating : 155/180

Insulation Material : Polyurethane

Diameter : 0.03mm

Conductor material : Copper

Key word : 3UEW 155 0.03mm Super Thin Hot Air Self-adhesive Enameled Copper Wire For Speaker Coils

Type : Solderable Polyurethane 0.025mm 0.03mm Self Bonding Enameled Copper Wire

Contact Now

Solderable Polyurethane 0.025mm 0.03mm Self Bonding Enameled Copper Wire

At the same time, if you have special needs, we can also provide alcohol-type enameled wires to meet the needs of different markets. Whether you are an electrical engineer or an electronics manufacturer, we can provide you with the most suitable solution.

At the same time, if you have special needs, we can also provide alcohol-type enameled wires to meet the needs of different markets. Whether you are an electrical engineer or an electronics manufacturer, we can provide you with the most suitable solution.

Key word

Solderable Polyurethane 0.025mm 0.03mm Self Bonding Enameled Copper Wire

Characteristics

Technical requests

Test Results

Sample 1

Sample 2

Sample 3

Surface

Good

OK

OK

OK

Bare Wire Diameter

0.030mm±

0.001

0.030mm

0.030mm

0.030mm

Overall Diamter

max.0.042mm

0.0419mm

0.0419mm

0.0419mm

Insulation Thickness

min. 0.002mm

0.003mm

0.003mm

0.003mm

Bonding Film Thickness

min. 0.002mm

0.003mm

0.003mm

0.003mm

Continuity of covering(12V/5m)

max. 3

max. 0

max. 0

max. 0

Adherence

No crack

OK

Cut Through

continue 3 times pass

170℃/Good

Solder Test 375℃±5℃

max. 2s

max. 1.5s

Bonding Strength

min. 1.5g

9 g

Conductor Resistance(20℃)

≤ 23.98- 25.06Ω/m

24.76Ω/m

Breakdown voltage

≥ 375 V

MIN. 1149V

Elongation

min. 12%

19%

Solderable Polyurethane Enamel Coated Magnet Wire 0.025mm 0.03mm Self Bonding

Solderable Polyurethane Enamel Coated Magnet Wire 0.025mm 0.03mm Self Bonding

Solderable Polyurethane Enamel Coated Magnet Wire 0.025mm 0.03mm Self Bonding
