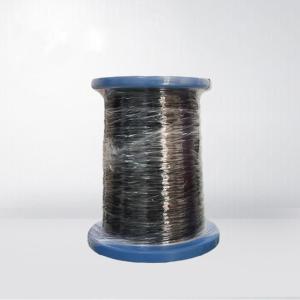

0.15mm Triple Insulated Litz Wire / Soldering Magnet Wire

Name: 015mm Triple Insulated Litz Wire Soldering Magnet Wire
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : 0.15mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 3000 meter

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : UL Certified Class B F 0.15mm Insulated TIW Triple Insulated Copper Wire

Thermal rating : 130

Insulation Material : UEW

Diameter : 0.15mm

Conductor material : Copper

Key word : UL Certified Class B F 0.15mm Insulated TIW Triple Insulated Copper Wire

Contact Now

UL Certified Class B F 0.15mm Insulated TIW Triple Insulated Copper Wire

The three insulation layers of the wire consist of a golden yellow polyamide film, a highly insulating lacquer coating and a transparent fiberglass layer.

Triple-insulated wire has a wide range of applications in cutting-edge technology and defense. It can be used to make windings of miniature motors and high-frequency transformer windings of miniaturized switching power supplies.

Product Name		UL Certified Class B F 0.15mm Insulated TIW Triple Insulated Copper Wire
Size		0.15mm
Insulation		Polyurethane
Thermal Rating		Class 130
Key word		UL Certified Class B F 0.15mm Insulated TIW Triple Insulated Copper Wire

Characteristics	Technical requests		Test Results		Conclusion
				Sample 1	Sample 2
1	Surface	Good		OK	OK	OK
2	Bare Wire Diameter	0.15±	0.008	0.155	0.15	OK
2	Bare Wire Diameter	0.15±	0.008	0.155	0.15	OK
4	Overall Diameter	0.35±0.02mm		0.35	0.351	OK
5	Conductor Resistance	≤ 1008.70Ω/km		988.5	979.6	OK
6	Elongation	≥ 15 %		27.50%	25.50%	OK
Remark:
	Test Items	Technical Requests		Results	Conclusion:
1	Adhesive	Coating layer is good		OK	Approved
2	Heat Shock	225 ℃ 30min no crack		OK
3	Solder Ability	420± 5℃ 2-10 Secs		OK
4	Breakdown Voltage	AC6KV/60s, no degumming, no crack		OK
