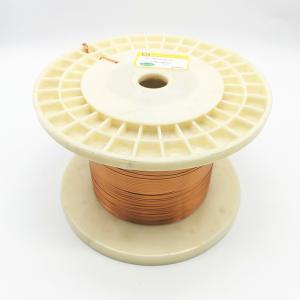

Polyurethane Flat Copper Wire Insulated 1.8mm * 0.3mm

Brand Name : Ruiyuan

Model Number : 1.8mm * 0.3mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 10 Kilogram/Kilograms

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : Rectangular enameled copper wire

Thermal rating : 180

Insulation Material : UEW

Width : 1.8mm

Thickness : 0.3mm

Type : Hot wind Self bonding wire

Contact Now

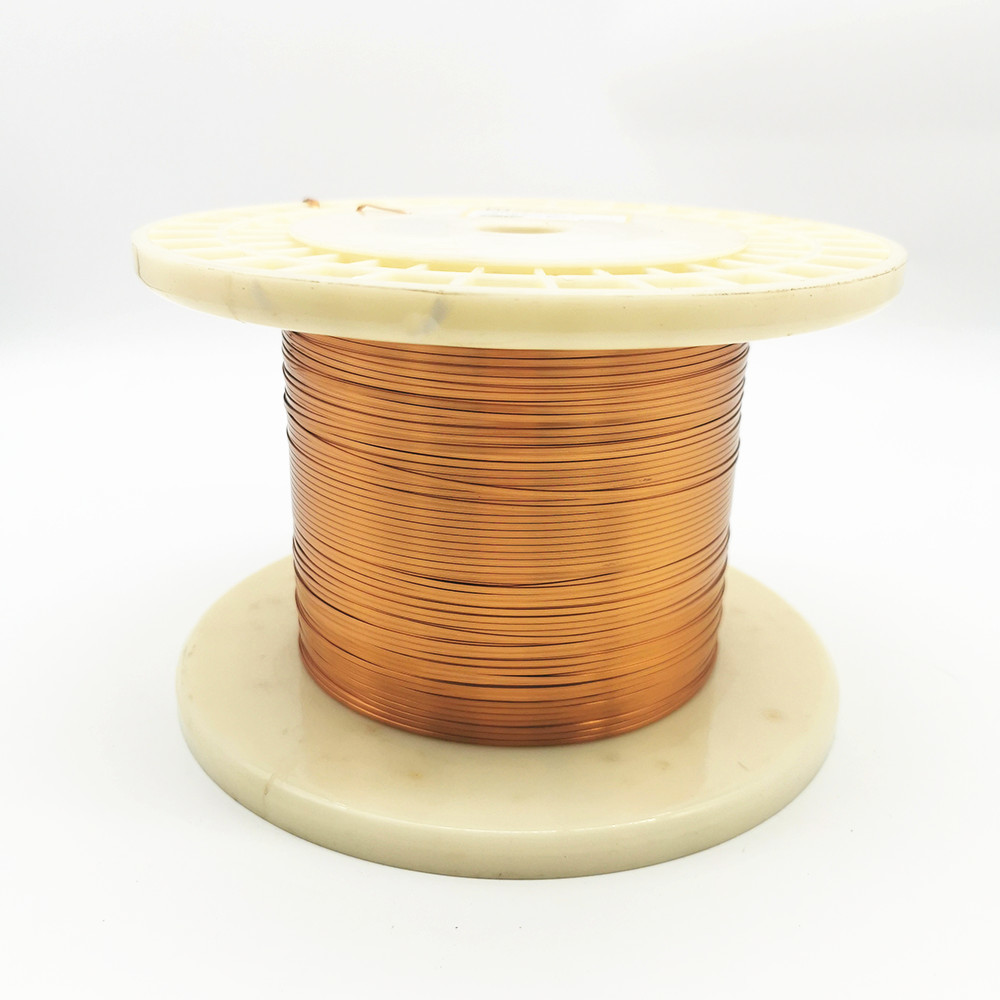

Polyurethane 1.8mm * 0.3mm Hot Wind Self Bonding Flat Enameled Copper Wire

We supply rectangular enameled copper wire, it' widely used in motor. The size can be customized.

Characteristics Standard Test Result
Appearance Smooth Equality Smooth Equality
Conductor Diameter Width 1.80±0.060 1.791
Thickness 0.30±0.009 0.295
Thickness Insulation Width 0.005 0.067
Thickness 0.005 0.043
Min Thickness of Bonding(mm) Width 0.005 0.007
Thickness 0.005 0.009
Overall Diameter Width 1.800-1.885 1.858
Thickness 0.335-0.345 0.338
Pinhole ≤3hole/m 0
Elongation ≥30 % 35
Flexibility and Adherence No crack No crack
Conductor Resistance (Ω/km at 20℃) ≤35.32 32.97
Breakdown Voltage ≥0.7KV 2.5KV
Heat shock No Crack No Crack
Conclution Pass
