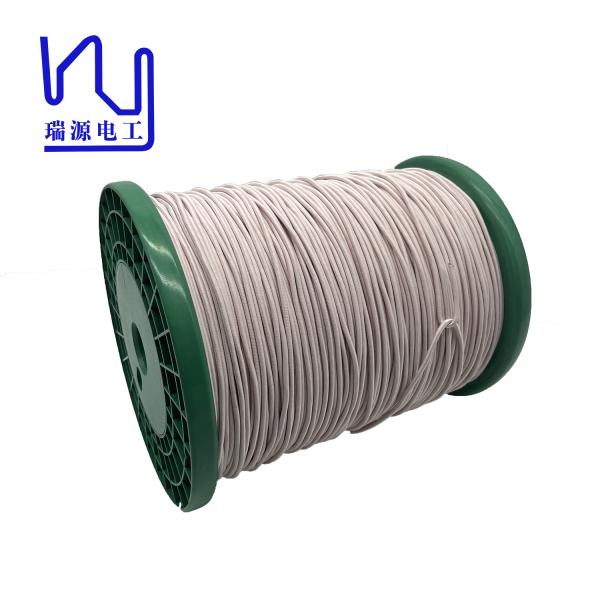

Ustc155 Copper Litz Wire 0.1mm*400 High Frequency Nylon Served

Name: Ustc155 Copper Litz Wire 01mm400 High Frequency Nylon Served
Brand: Rvyuan
Price: 1 USD

Brand Name : Rvyuan

Model Number : Copper litz wire

Certification : ISO9001/ISO14001/UL/SGS

Place of Origin : China

MOQ : 20kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Name : USTC155 0.1mm*400 high frequency Nylon served copper litz wire

Diameter : 0.1mm

Standard : GB/T5013.3/IEC60245-3:1994

Conductor : Copper

Insulation : Enamel

Rated Temperature : 155/180

Key word : USTC155 0.1mm*400 high frequency Nylon served copper litz wire

No. of strands : 400

Contact Now

USTC155 0.1mm*400 high frequency Nylon served copper litz wire

This article will introduce the advantages and uses of silk covered wire. The advantages of silk covered litz wire in electronic manufacturing are mainly reflected in its insulation performance and temperature resistance.

Its insulating layer is made of enameled copper wire, which can prevent the wire from being scratched and short-circuited, and ensure the stable operation of electrical equipment. The outer layer is covered with nylon, which enhances the wear resistance and corrosion resistance of the wire, ensuring the safe operation of electrical equipment in harsh environments.

Datasheet for nylon6
Model	Lot No	Tensile strength(CN/dtex)	CV value	Breaking Elongation	CV value
93dtex/48f	8501	4.31	3.84	66.6	3.12
	8502L	4.27	3.87	67.5	3.53

Characteristics	Technical requests	Test Results
Conductor diameter(mm)	0.10±0.003	0.098-0.10
Overall diameter(mm)	Max.3.44	2.7	2.82
No. Of strands	400	√
Pitch(mm)	47±3	√
Maximum Resistance(Ω/m 20℃)	0.00595	0.00547	0.00546
Minimum Breakdown Voltage(V)	1100	3300	3200
Solderability	390±5℃, 12s	√
Pinhole(faults/6m)	Max. 80	28	30

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
