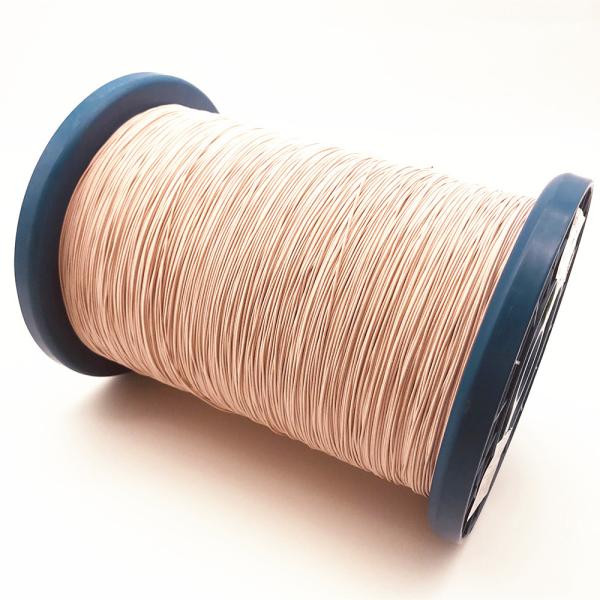

1300v 0.1mm * 250 Nylon Covered Insulated Copper Litz Wire

Name: 1300v 01mm 250 Nylon Covered Insulated Copper Litz Wire
Brand: Ruiyuan
Price: 1 USD

Wholesale 1300v 0.1mm * 250 Nylon Covered Insulated Copper Litz Wire from china suppliers

Brand Name : Ruiyuan

Model Number : 0.1*250

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 20Kilogram/Kilograms

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Negotiation

Delivery Time : 2-15 days

Packaging Details : Carton

Product name : Silk covered litz wire

No. of strands : 250

Single wire diameter : 0.1mm

Voltage : 1300v

Thermal grade : 155

Contact Now

USTC 155 1300V 0.1mm * 250 Nylon Covered Insulated Wire Enamel Stranded Copper Litz Wire

Litz wire employs a stranded wire with individually insulated conductors (forming a bundle). The covering with silk can improve the winding efficiency, especially at high speed.

USTC WIRE 0.1*250	Technical requests
Conductor diameter(mm)	0.10±0.003
No. Of strands	250
Maximum outer diameter(mm)	2.39
Pitch(mm)	32±3
Maximum Resistance(Ω/km 20℃)	9.34
Minimum Breakdown Voltage(V)	1300
Solderability	390±5℃, 9s

1300v 0.1mm * 250 Nylon Covered Insulated Copper Litz Wire
