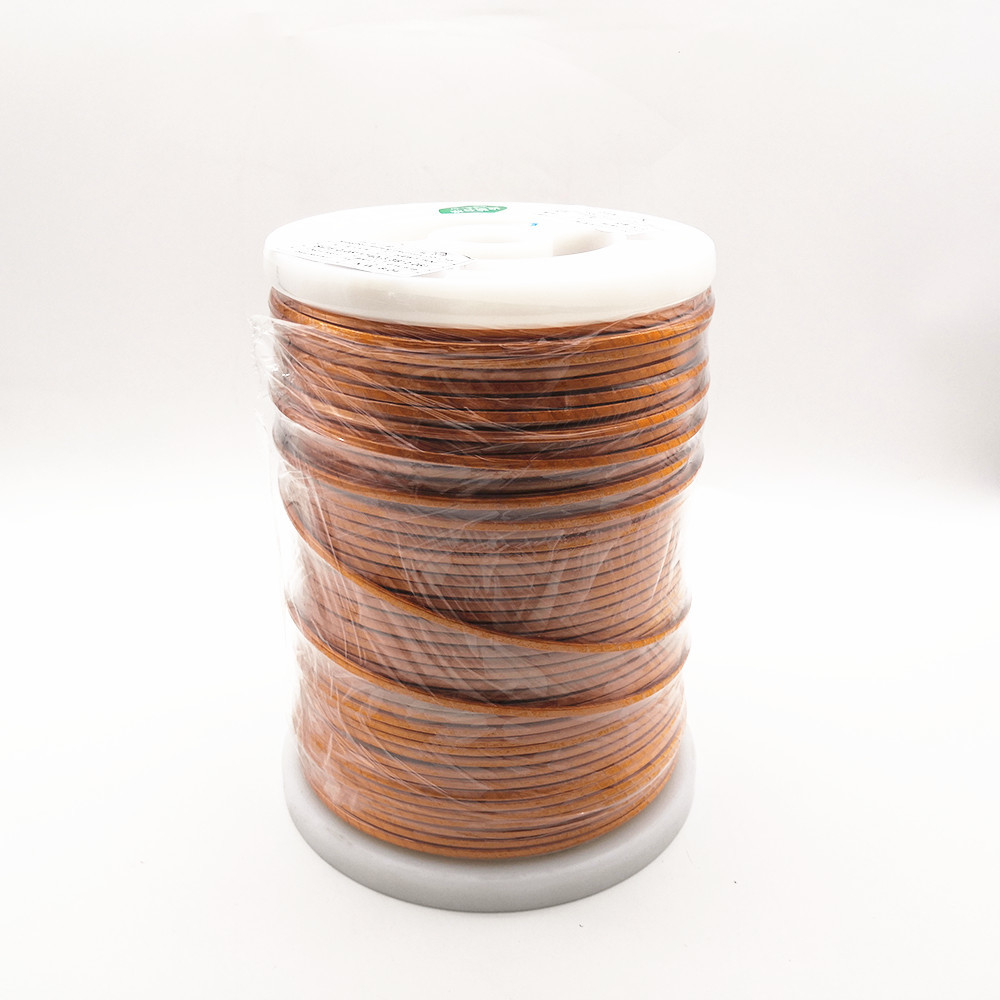

0.1mm X 851 Taped Mylar Wire For Transformer

Name: 01mm X 851 Taped Mylar Wire For Transformer
Brand: Ruiyuan
Price: 1 USD

Wholesale 0.1mm X 851 Taped Mylar Wire For Transformer from china suppliers

Brand Name : Ruiyuan

Model Number : 0.1mm x 851

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 20Kilogram/Kilograms

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 100Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product name : Taped litz wire

Single wire diameter : 0.1mm

No. of strands : 851

Cover : PI ( overlap 50%)

Breakdown : 6000V

Contact Now

0.1mm x 851 Taped Litz Wire Enameled Copper Stranded Mylar Litz Wire For Transformer

Taped high frequency litz wire constructions are mainly suitable for applications requiring a high break down voltage. Taping gives litz wire improved capability to withstand flexing and mechanical stress. Self-adhesive tape material increases protection against re-opening during and after manufacturing processes and thus secures the compliance with defined creepage distance.
Some tapes can be thermally sealed, when used in conjunction with certain wire enamel types.

Description	Taped Litz Wire -PI 0.10*851
Conductor diameter(mm)	0.10
Conductor diameter tolerance (mm)	±0.003
Maximal overall diameter (mm)	5.06
Thermal Class	155
Strand number	851
Pitch(mm)	97
Stranding direction	S
Insulation Layer	PI
Material specs(mm*mm or D)	0025*15
Times of Wrapping	1
Overlap(%)	76
Wrapping direction	Z
Max resistance (Ω/m at20℃)	0.00279
Min breakdown voltage	6000

0.1mm X 851 Taped Mylar Wire For Transformer
