0.2 Mm Class B Triple Insulated Wire Enamelled Copper

Name: 02 Mm Class B Triple Insulated Wire Enamelled Copper
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : 0.2mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 3000 meter

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : UL System Certified 0.20mmTIW Wire Class B Triple Insulated Copper Wire

Thermal rating : 130

Insulation Material : UEW

Diameter : 0.20mm

Conductor material : Copper

Key word : UL System Certified 0.20mmTIW Wire Class B Triple Insulated Copper Wire

Contact Now

UL System Certified 0.20mmTIW Wire Class B Triple Insulated Copper Wire

1. Production standard range:0.1-1.0mm

2. Withstand voltage class, class B 130℃, class F 155℃.

3.Excellent withstand voltage characteristics, breakdown voltage greater than 15KV, obtained reinforced insulation. 4.No need to peel off the outer layer can be direct welding, solder ability 420℃-450℃≤3s.

Model		Traditional Transformer (No Use Triple insulated wire)	Smaller transformer (use TIW)
Output voltage		20W	20W
Volume	cm³	36	16
	%	100	53
Weight	g	70	45
	%	100	64

Product Name		UL System Certified 0.20mmTIW Wire Class B Triple Insulated Copper Wire
Size		0.2mm
Insulation		Polyurethane
Thermal Rating		Class 130
Sample		Avaible on your requests.

0.2 Mm Class B Triple Insulated Wire Enamelled Copper

Product Tags:

0.2 mm triple insulated wire

enamelled copper triple insulated wire

triple insulated 0.2 mm enamelled copper wire

Wholesale 0.2 Mm Class B Triple Insulated Wire Enamelled Copper from china suppliers

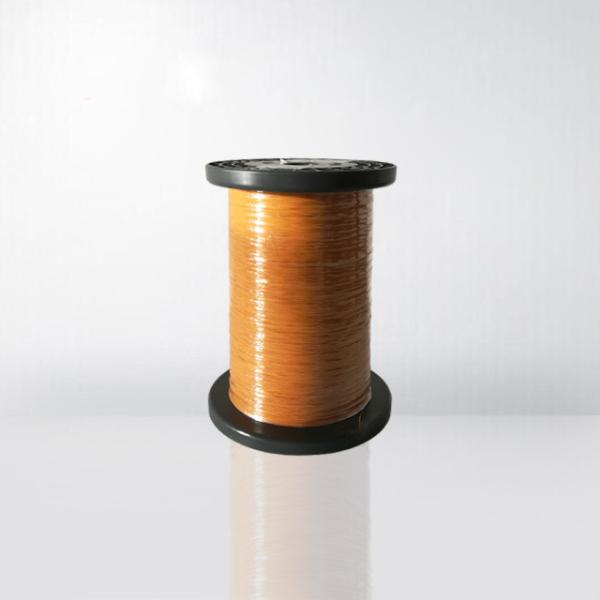

0.2 Mm Class B Triple Insulated Wire Enamelled Copper Images
