0.3mm Enameled Transformer Triple Insulated Wire IEC / JIS / NEMA

Product Categories
Tianjin Ruiyuan Electric Material Co,.Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

0.3mm Enameled Transformer Triple Insulated Wire IEC / JIS / NEMA

Brand Name : Ruiyuan

Model Number : 0.3mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 3000 meter

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : Triple Insulated Copper Wire TIW -B 0.3mm Enameled for Transformer IEC/JIS/NEMA

Thermal rating : 130

Insulation Material : UEW

Diameter : 0.30mm

Conductor material : Copper

Key word : Triple Insulated Copper Wire TIW -B 0.3mm Enameled for Transformer IEC/JIS/NEMA

Contact Now

Triple Insulated Wire TIW -B 0.3mm Copper Motor Winding Enameled for Transformer IEC/JIS/NEMA

-Special abrasive resistance and surface smoothness, staticfriction coefficient ≤0.155, the product can meet the automatic winding machine high-speed winding.

-Resistant chemical solvents and impregnated paint performance, Rating voltage Rated voltage(working voltage)1000VRMS, UL.

-High strength insulation layer toughness, repeated bending strethc, the insulation layers will not crack damage.

haracteristics
Test Standard
Conclusion
Package
Whether Package condition is good(including carton,spool, PE film, Air bubble film).Whether carton's seal is complete
OK
Bare Wire Diameter
0.30±0.01MM
0.295-0.301
Overall Diameter
0.50±0.020MM
0.493-0.501
Conductor Resistance
MAX: 261.0Ω/KM
255.6Ω/KM
Breakdown voltage of straight wire
The length of wire 305mm,wind on the copper bar, test condition 1mA/60s5.0KV
OK
Breakdown voltage of bending wire
The length of wire 305mm , Test condition:1mA/60S/4.5KV
OK
Breakdown voltage of twist wire
The length of wire 125mm , Test condition: 50HZ/1mA/60S/AC10KV
OK
Elongation
MIN:20%
23.8-26.9%
Solder ability
420 4-5 Secs
OK

Product Name
Triple Insulated Copper Wire TIW -B 0.3mm Enameled for Transformer IEC/JIS/NEMA
Size
0.3mm
Insulation
Polyurethane
Thermal Rating
Class 130
Sample
Avaible on your requests.

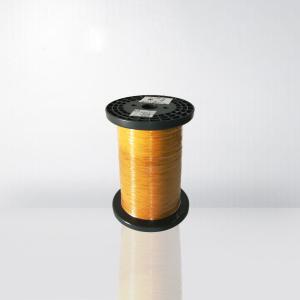

0.3mm Enameled Transformer Triple Insulated Wire IEC / JIS / NEMA

0.3mm Enameled Transformer Triple Insulated Wire IEC / JIS / NEMA

0.3mm Enameled Transformer Triple Insulated Wire IEC / JIS / NEMA

0.3mm Enameled Transformer Triple Insulated Wire IEC / JIS / NEMA

0.3mm Enameled Transformer Triple Insulated Wire IEC / JIS / NEMA0.3mm Enameled Transformer Triple Insulated Wire IEC / JIS / NEMA
