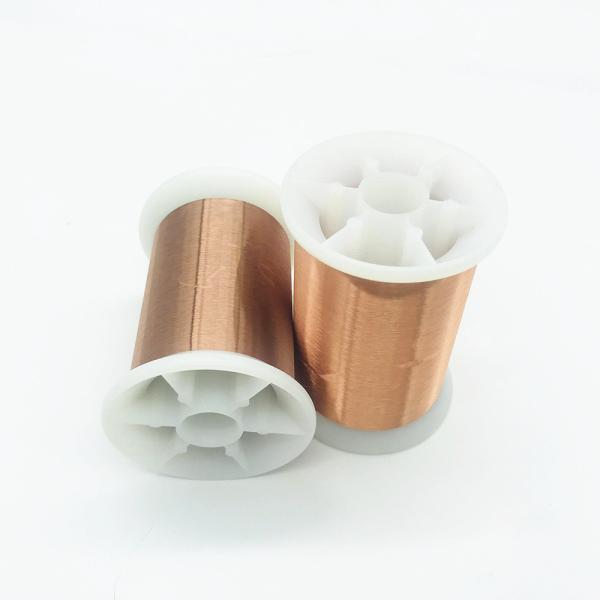

2uew 180 48awg Voice Coil Wire High Frequency Enameled Magnet Copper

Name: 2uew 180 48awg Voice Coil Wire High Frequency Enameled Magnet Copper
Brand: Rvyuan
Price: 1 USD

Brand Name : Rvyuan

Model Number : UEW

Certification : ISO9001/ISO14001/UL/SGS

Place of Origin : China

MOQ : 10kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Name : UL Certification UEW 52AWG Solderable Enamelled Copper Wire For Ignition Coil

Color : Red/Green/Normal

Diameter : 0.06m

Standard : GB/T5013.3/IEC60245-3:1994

Conductor : Copper

Insulation : Polyurethane

Rated Temperature : 155/180

Key word : Enameled copper wire

Contact Now

2UEW 180 48AWG High Frequency Enameled Magnet Copper Wire For Voice Coils

Polyurethane Enameled Copper Wire
Conductor Material:Copper
Diameter: 0.011-1.20mm enameled copper wire
Standard: IEC, NEMA, GB,JIS
Thermal Class: 130,155,180
Enameled types : UEW,QA
Certification:UL Approved, ISO9001,ISO14001,RoHS

Name	2UEW 180 48AWG High Frequency Enameled Magnet Copper Wire For Voice Coils
Key word	Enameled copper wire
Insulation	Polyurethane
Thermal rating	155degree
Diameter of the enameled copper wire	0.02mm
Type	Enameled copper wire

NO.	Characteristics	Technical requests		Test Results			Conclusion
				Sample1	Sample 2	Sample 3
1	Surface	Good		OK	OK	OK	OK
2	Bare Wire Diameter	0.060±	0.002	0.0600	0.0600	0.0600	OK
			0.002
3	Insulation thickness	≥ 0.008 mm		0.0100	0.0120	0.0110	OK
4	Overall diameter	≤ 0.074 mm		0.0700	0.0720	0.0710	OK
5	Electrical Resistance	≤6.415Ω/m		6.009	6.081	6.013	OK
6	Elongation	≥ 14 %		21.7	22.6	21.9	OK
7	Breakdown voltage	≥500 V		1769	1961	1886	OK
8	Pinbole test	≤ 5 hole/5m		0	0	0	OK
9	Enamel continuity	≤ 15 hole/30m		0	0	0	OK
Remark
	Test items		Technical Requests		Results		Conclusion
1	Adhesive		No crack		OK		Approval
2	Cut-through		200℃ 2mins no crack		OK
3	Heat Shock		175±5℃/30min no crack		OK
4	Solder Ability		390± 5℃ 2Sec Smooth		OK

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
