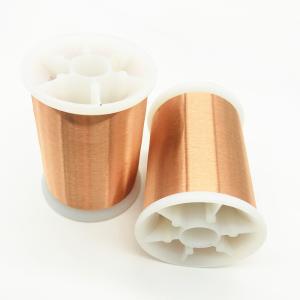

UL Certificated 2UEW 0.02mm Self Bonding Copper Wire For Voice Coils Hot Air

Name: UL Certificated 2UEW 002mm Self Bonding Copper Wire For Voice Coils Hot Air
Brand: Ruiyuan
Price: 1 USD

Wholesale UL Certificated 2UEW 0.02mm Self Bonding Copper Wire For Voice Coils Hot Air from china suppliers

Brand Name : Ruiyuan

Model Number : 0.02mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 20Kilogram/Kilograms

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product name : Self bonding enameled copper wire

Diameter : 0.02mm

Insulation : Polyurethane

Bonding method : Hot air / alcohol

Thermal Class : 155

Contact Now

UL Certificated 2UEW 0.02mm Self Bonding Enameled Copper Wire For Voice Coils Hot Air

We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years.

We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage.

Size range: 0.011mm-1.2mm

UL Certificated 2UEW 0.02mm Self Bonding Copper Wire For Voice Coils Hot Air

Characteristics	Technical requests	Test Results
Characteristics	Technical requests	Sample 1	Sample 2
Surface	Good	OK	OK
Bare Wire Diameter	0.020±0.001	0.02	0.02
Overall Diameter	0.022-0.024	0.023	0.023
Conductor Resistance	≤60.810Ω/m	56.812	56.403
Elongation	≥8%	10%	10%
Breakdown Voltage	≥130V	212	247
Pinhole Test	≤ 8 holes/5m	1	0
Test Items	Technical Requests		Results
Adhesive	Coating layer is good		OK
Cut-through	200℃ 2mins no breakdown		OK
Heat Shock	180±5℃/30min no crack		OK
Solder Ability	390± 5℃ 2 Sec Smooth		OK
Solvent Resistance	No blister, no expansion, no shed		OK
