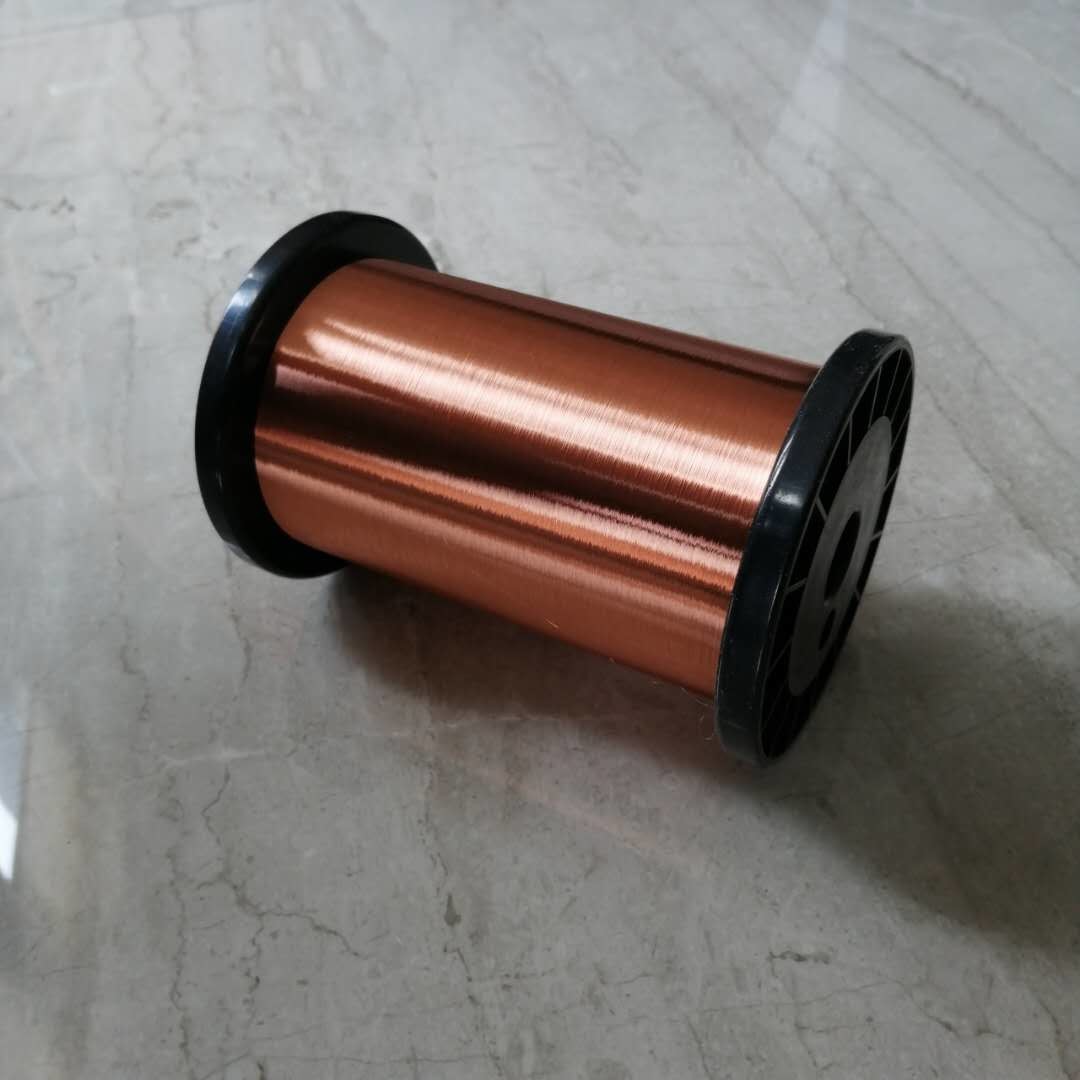

Ultra Fine Enameled Self Bonding Magnet Wire Round Shape For Speaker Voice Coils

Name: Ultra Fine Enameled Self Bonding Magnet Wire Round Shape For Speaker Voice Coils
Brand: Rvyuan
Price: 1 USD

Wholesale Ultra Fine Enameled Self Bonding Magnet Wire Round Shape For Speaker Voice Coils from china suppliers

Brand Name : Rvyuan

Model Number : 0.012 - 0.8mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 10 Kilogram/Kilograms

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 200 Ton/Tons per Month

Delivery Time : 2-15 days

Packaging Details : Carton

Insulation material : Enameled

Conductor material : Copper

Application : transformer

Conductor type : Solid

Shape : Round

Name : Self Bonding Magnet Wire

Contact Now

ULTRA FINE ENAMELED VOICE COIL WIRE AWG ROUND SELF BONDING COPPER WIRE DC RESISTIVEITY

We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...

We have a long history of producing self-adhesive lines. Since the beginning of our factory, we have started to develop and produce self-adhesive lines.Because of our strong R & D strength, our products have a wide range of applicationsWe have a full range of self-adhesive lines and a wide range of applications.Thermal class is155C, 180 C, 200 C, 220 C.Conductor material includes enameled round wire, enameled copper-clad aluminum wire

APPLICATION

Speaker coil, such as microphone, earphone, speaker, hearing aid,Bluetooth audio, speakers, etc.;High-temperature voice coils, such as car audio, home theater, high-power speakers, etc. High-sensitivity voice coils, such as headphone speakers and high-temperature-resistant voice coils;micro vibration motor,such as focus-driving,(coin-type, coreless-type) and other electrical and electronics components, such as inductor, watch coil, coin machine coil, buzzer;magnetic head, IC card.

Ultra Fine Enameled Self Bonding Magnet Wire Round Shape For Speaker Voice Coils

Size	Conductor	Insulation Thickness	Bonding Layer thickness	Overall Dia	DCR(at 20℃)	Breakdown voltage (V)	Elongation %	Bonding Strength(g)
Dia mm	Tolerance (mm)	(mm)	(mm)	(mm)	[Ω/m]
0.070	±0.002	Min0.003	Min0.003	Max0.086	4.30～4.50	Min700	Min12.0	Min 5
0.068	±0.002	Min0.003	Min0.003	Max0.083	4.60～4.80	Min700	Min12.0	Min 5
0.065	±0.002	Min0.003	Min0.003	Max0.078	4.85～5.20	Min700	Min12.0	Min 5
0.060	±0.002	Min0.002	Min0.003	Max0.071	5.71～6.53	Min700	Min12.0	Min 5
0.058	±0.002	Min0.002	Min0.002	Max0.071	6.50～6.70	Min700	Min12.0	Min 5
0.057	±0.002	Min0.002	Min0.002	Max0.070	6.40～7.00	Min700	Min12.0	Min 5
0.055	±0.002	Min0.002	Min0.003	Max0.066	6.75～7.83	Min700	Min10.0	Min 5
0.053	±0.002	Min0.002	Min0.003	Max0.064	8.25～8.44	Min700	Min10.0	Min 5
0.052	±0.002	Min0.003	Min0.003	Max0.064	8.00～8.50	Min700	Min10.0	Min 5
0.050	±0.002	Min0.002	Min0.003	Max0.061	8.11～9.53	Min700	Min10.0	Min 5
0.049	±0.001	Min0.002	Min0.003	Max0.0580	8.90～9.40	Min700	Min10.0	Min 5
0.048	±0.001	Min0.002	Min0.003	Max0.059	9.14～9.94	Min700	Min10.0	Min 5
0.047	±0.001	Min0.001	Min0.002	Max0.057	9.52～10.4	Min700	Min10.0	Min 3
0.046	±0.001	Min0.003	Min0.003	Max0.0550	9.90～10.3	Min360	Min10.0	Min 3
0.045	±0.001	Min0.001	Min0.002	Max0.055	10.3～11.4	Min700	Min10.0	Min 3
0.044	±0.001	Min0.003	Min0.003	Max0.0540	11.4～12.5	Min275	Min7.0	Min 3
0.043	±0.001	Min0.003	Min0.003	Max0.0520	11.4~12.5	Min275	Min7.0	Min 3
0.042	±0.001	Min0.003	Min0.003	Max0.0530	12.2~13.0	Min275	Min7.0	Min 3
0.041	±0.001	Min0.003	Min0.003	Max0.0500	12.9~13.6	Min275	Min7.0	Min 3
0.040	±0.001	Min0.002	Min0.002	Max0.050	13.0~14.5	Min100	Min7.0	Min 3
0.039	±0.001	Min0.002	Min0.002	Max0.049	14.6~15.2	Min100	Min7.0	Min 3
0.038	±0.001	Min0.002	Min0.002	Max0.0490	15.5~16.0	Min275	Min7.0	Min 3
0.037	±0.001	Min0.002	Min0.002	Max0.0480	16.2~16.8	Min275	Min6.0	Min 3
0.035	±0.001	Min0.002	Min0.002	Max0.0460	17.5~18.6	Min250	Min6.0	Min 3
0.034	±0.001	Min0.002	Min0.002	Max0.0430	18.1~18.9	Min250	Min6.0	Min 3
0.032	±0.001	Min0.002	Min0.002	Max0.0400	21.5~22.5	Min210	Min6.0	Min 2
0.030	±0.001	Min0.002	Min0.002	Max0.0390	23.7~24.9	Min210	Min6.0	Min 2
0.028	±0.001	Min0.002	Min0.002	Max0.0360	26.9~28.4	Min190	Min6.0	Min 2
0.025	±0.001	Min0.002	Min0.002	Max0.0320	34.0~37.0	Min165	Min6.0	Min 2
0.020	±0.001	Min0.001	Min0.002	Max0.0260	54.0~57.0	Min135	Min6.0	Min 1

Ultra Fine Enameled Self Bonding Magnet Wire Round Shape For Speaker Voice Coils
