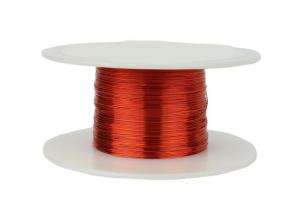

Enameled Copper Wire Magnet Wire For Voice Coils

  • 1
  • 2
  • 3

Brand Name : Rvyuan

Certification : ISO9001/ISO14001 /UL/SGS

Place of Origin : China

MOQ : Different types with differet MOQ

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 200 Ton/Tons per Month

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Model Number : 0.025-0.6mm

Thermal Class : 155/180

Brand : Rvyuan

Stock : Available

Size Range : 0.012-0.8mm

Conductor : Copper

Thermal class : 155

Insulation : Enameled

Contact Now

ENAMELED COPPER WIRE MAGNET WIRE FOR VOICE COILS

We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...

FEATURES

  • Excellent adhesion and ductility;

  • Excellent conductivity, electrical properties;

  • Good performance at high heat resistance, heat shock and cut through.

APPLICATIONS

  • Electrical Motors

  • Lighting Fixtures

  • Transformers

  • Coils

  • Switchgear

  • Solenoid Valves

  • Automobiles

Enameled Copper Wire Magnet Wire For Voice Coils

SPECIFICATIONS

Self-bonging Enameled Wire for Speaker (voice coil)
Description Designation Thermal Grade(℃) Heating temperature(℃) Dia(mm) Feature Application
Polyester
Enameled
Wire		 PEKVW 155 180~200 0.05~0.60 ●Thermal grade 155
●Solvent bonding thermosetting type,
high bonding strength		 Voice coils in automobiles,
notebooks,earphones,
blue-tooth stereos,speakers.
Polyimide
Enameled
Wire		 EIKVW 200 180~200 0.05~0.60 ●Thermal grade 180
●Solvent bonding thermosetting type,
high bonding strength		 High temp.voice coils in
automobiles,household AV,
high power speakers
Polyamideimide
Enameled
Wire		 AIKVW 220 180~200 0.06~0.60 ●Thermal grade 200
●Solvent bonding thermosetting type,
high bonding strength		 Ultra-high temp.voice coils
in high power speakers
Polyester
Enameled
CCA Wire		 PEKVCCAW 155 170~200 0.05~0.60 ●Thermal grade 155
●Solvent bonding thermosetting type,
high bonding strength
●CCA conductor,light weight＆high sensitivity		 High sensitivity＆light weight
voice coils in earphones
Polyimide
Enameled
CCA Wire		 EIKVCCAW 180 170~200 0.05~0.60 ●Thermal grade 180
●Solvent bonding thermosetting type,
high bonding strength
●CCA conductor,light weight＆high sensitivity		 High sensitivity＆light weight
voice coils in earphones

Enameled Copper Wire Magnet Wire For Voice Coils

Enameled Copper Wire Magnet Wire For Voice Coils

Enameled Copper Wire Magnet Wire For Voice Coils

Enameled Copper Wire Magnet Wire For Voice Coils

Enameled Copper Wire Magnet Wire For Voice Coils

Enameled Copper Wire Magnet Wire For Voice Coils
