Round Copper Magnet Wire Ultra Fine Self Bonding CCA Wire For Voice Coil

Name: Round Copper Magnet Wire Ultra Fine Self Bonding CCA Wire For Voice Coil
Brand: Rvyuan
Price: 1 USD

Wholesale Round Copper Magnet Wire Ultra Fine Self Bonding CCA Wire For Voice Coil from china suppliers

Brand Name : Rvyuan

Model Number : 0.025-0.6mm

Certification : IEC/NEMA/JIS/RoHS/ISO

Place of Origin : China

MOQ : Different types with differet MOQ

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Conductor Thickness : 0.025-0.6mm

Standard : IEC/JIC/NEMA

Material : Round copper

Delivery : Fast Delivery Gurantee

Conductor : aluminum and copper

Thermal Class : 155

Min bonding strength : 2g

Insulation : UEW/polyurethane

Contact Now

ROUND COPPER MAGNET WIRE ULTRA FINE SELF BONDING CCA WIRE FOR VOICE COIL

CCA is an electrical conductor composed of an inner aluminium core and outer copper cladding,The primary applications of this conductor revolve around weight reduction requirements. These applications include high-quality coils, such as the voice coils in headphones or portable loudspeakers; high frequency coaxial applications, such as RF antennas and cable television distribution cables; and power cables.

FEATURES

Light weight. Only 50% of copper at the same length
Solderability
Good ductility and bending strength
High fidelity sound quality

APPLICATION

Micro voice coil speakers
Microphones,
buzzer
HIFI stereos

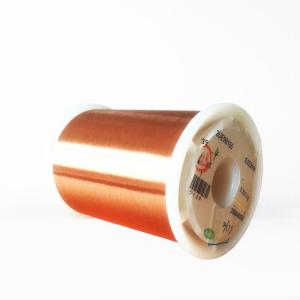

Round Copper Magnet Wire Ultra Fine Self Bonding CCA Wire For Voice Coil

SPECIFICATION

Copper Clad aluminum wire (CCA)
Dia (mm)	Tolerance (mm)	Resistance/Ω/m20℃		Elongation%		G2 Max OD (mm)	Min.Insulation(mm)		Min Adhesive (g)	G2 Max OD (mm)	Min.Insulation(mm)		Min Adhesive (g)
Dia (mm)	Tolerance (mm)	SKHT	KHT	SKHT	KHT	G2 Max OD (mm)	Insulation	Bonding layer	Min Adhesive (g)	G2 Max OD (mm)	Insulation	Bonding layer	Min Adhesive (g)
0.025	0.025±0.001	52.42±5%	56.18±5%	3	3	0.037	0.002	0.002	5	0.032	0.002	0.001	2
0.03	0.030±0.001	36.40±7%	39.03±7%	4	4	0.043	0.002	0.002	5	0.04	0.002	0.001	2
0.035	0.035±0.001	26.75±7%	28.67±7%	5	5	0.048	0.002	0.002	5	0.045	0.002	0.001	3
0.04	0.040±0.001	20.48±7%	21.95±7%	6	6	0.055	0.002	0.002	5	0.052	0.002	0.001	3
0.045	0.045±0.001	16.18±7%	17.34±7%	7	7	0.06	0.002	0.002	8	0.057	0.002	0.001	3
0.05	0.050±0.002	13.11±7%	14.05±7%	5	8	0.067	0.003	0.003	8	0.064	0.003	0.0015	5
0.055	0.055±0.002	10.83±7%	11.61±7%	8	8	0.073	0.003	0.003	8	0.069	0.003	0.0015	5
0.06	0.060±0.002	9.10±7%	9.76±7%	9	9	0.078	0.003	0.003	8	0.075	0.003	0.0015	5
0.065	0.065±0.002	7.75±7%	8.25±7%	11	11	0.084	0.003	0.003	8	0.08	0.003	0.0015	5
0.07	0.070±0.002	6.69±7%	7.11±7%	12	12	0.09	0.003	0.003	8	0.085	0.003	0.0015	5
0.075	0.075±0.002	5.82±7%	6.19±7%	12	12	0.096	0.003	0.003	10	0.09	0.003	0.0015	8
0.08	0.080±0.002	5.12±7%	5.36±7%	14	14	0.101	0.003	0.003	10	0.097	0.003	0.002	8
