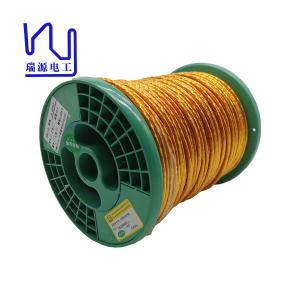

Electric Vehicle Use Copper Litz Wire 2uew-F-Pi 0.40*60 High Breakdown Voltage Taped

Name: Electric Vehicle Use Copper Litz Wire 2uewFPi 04060 High Breakdown Voltage Taped
Brand: Rvyuan
Price: 1 USD

Brand Name : Rvyuan

Model Number : Copper litz wire

Certification : ISO9001/ISO14001/UL/SGS

Place of Origin : China

MOQ : 20kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Name : Electrical Vehicle Use 2UEW-F-PI 0.40*60 High Breakdown Voltage Taped Litz Wire

Diameter : 0.4mm

Cover material : PI

Conductor : Copper

Insulation : Enamel

Rated Temperature : 155

Key word : Electrical Vehicle Use 2UEW-F-PI 0.40*60 High Breakdown Voltage Taped Litz Wire

No. of strands : 60

Contact Now

Electrical Vehicle Use 2UEW-F-PI 0.40*60 High Breakdown Voltage Taped Litz Wire

The advantage of PI film is high stability. In high temperature and chemically corrosive environments, the signal transmission is reliable and not easily affected by external interference.

In addition, PI film makes the circuit have better flexibility. Even if bent or rotated, it will not be damaged or affected. In terms of manufacturing process, PI film is highly viscous and can effectively bond the materials of wires and cables, thereby improving the efficiency of industrial manufacturing.

Test report for litz wire served with tape Spec: 2UEW-F-PI 0.4mm*60
Characteristics	Technical requests	Test Results
Outer diameter of single wire(mm)	0.422-0.439	0.428-0.438
Conductor diameter(mm)	0.40±0.005	0.397-0.399
Overall dimension(mm)	Min.4.74	4.21-4.51
No. Of strands	60	60
Pitch(mm)	47±3	√
Maximum Resistance(Ω/m 20℃)	0.002415	0.00227
Dielectric strength(V)	Min.6000	13500
Tape(overlap %)	Min.50	53

Name	Electrical Vehicle Use 2UEW-F-PI 0.40*60 High Breakdown Voltage Taped Litz Wire
Key word	Mylar litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.4mm
Number of strands	60
Type	Electrical Vehicle Use 2UEW-F-PI 0.40*60 High Breakdown Voltage Taped Litz Wire

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
