USTC 0.071mm * 375 litz Wire

Name: USTC 0071mm 375 litz Wire
Brand: Rvyuan
Price: 1 USD

Brand Name : Rvyuan

Model Number : 0.071mm

Certification : UL/ROHS/ICE/ISO9001/ISO14001

Place of Origin : China

MOQ : 10 Kilogram/Kilograms

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 200 Ton/Tons per Month

Delivery Time : 10-15 workding days

Packaging Details : Carton

Type : Insulated

Breakdown voltage : 1700V

Thermal Class : 155

Strands : 375

Coating layer material : Polyester/Nylon

Twist pitch : 3-70mm

Contact Now

USTC SILKED COVERED 0.071MM LITZ WIRE WITH 357STRANDS ENAMELED COPPER LITE WIRE

USTC silked covered litz wire on the basis of the advantages of both enameled wire, still possesses the advantages of scraping resistance, insulation protection, and when applied to all kinds of shape skeleton, circular cross section assumes the rules, the characteristics of small deformation, which can effectively avoid back into the ring, don't go around.

	Characteristics	Technical requests	Test Results		Conclusion
1	Inner diameter	0.071±0.003 mm	0.070mm		OK
2	Thickness of coating	≥ 0.007mm	0.0055		OK
3	Outer diameter	≤ 0.084mm	0.081		OK
4	Twist direction	S/Z	Z		OK
5	Strands	357	357		OK
6	Twist Pitch	20.5±3 mm	20.6		OK
7	Breakdown Voltage	425V	1700V		OK
8	Conductor Resistance	≤ 13.69Ω/km	12.57		OK
9	Solderability	YES	YES		OK
10	Pinhole	≤714PCS/5m	21pcs		OK
11	Overlapping Rate	33%/55%/60%	66%		OK
Remark: The product meet the requirement of RoHS				Conclusion: Approved

Product Tags:

insulated copper litz wire

litz enamel insulated copper wire

copper litz wire insulated

Wholesale USTC 0.071mm * 375 litz Wire from china suppliers

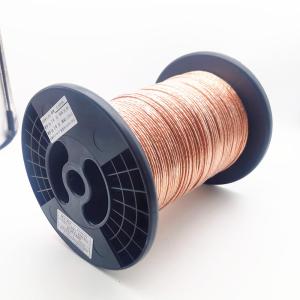

USTC 0.071mm * 375 litz Wire Images
