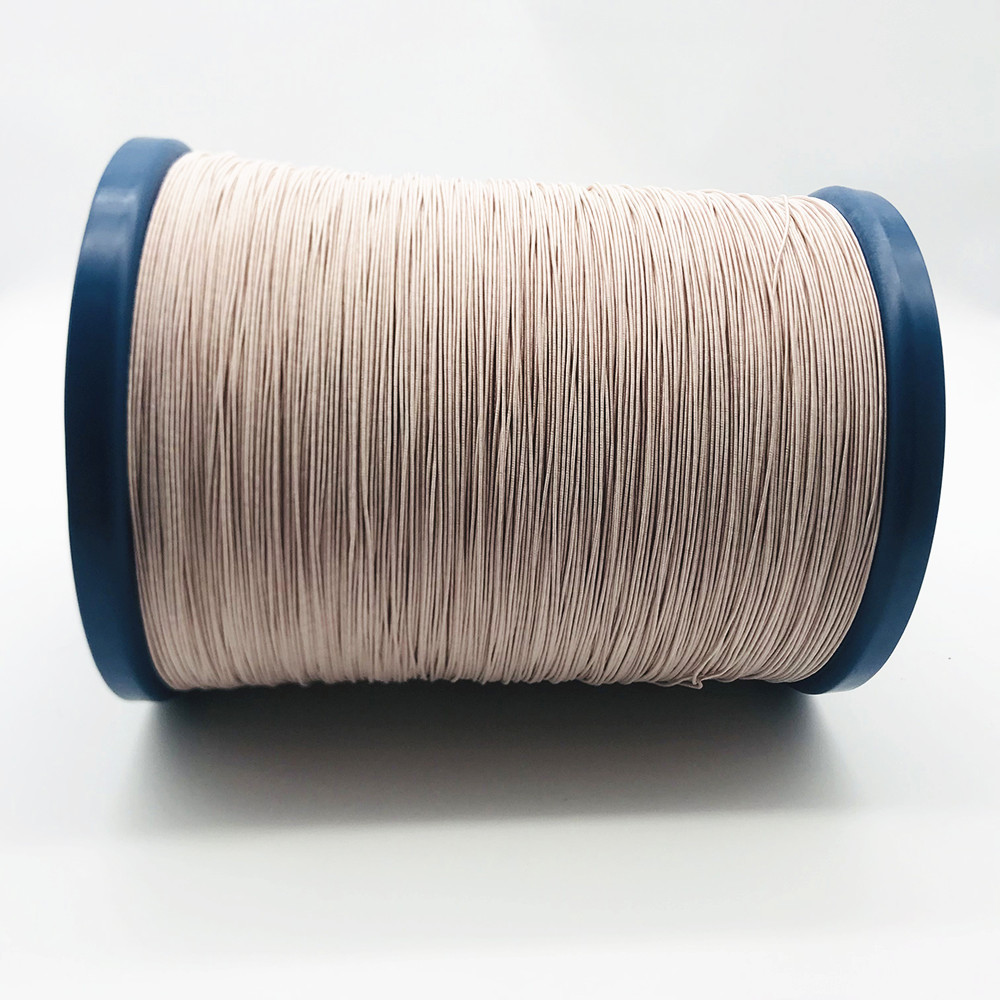

0.08mm * 105 Silk Covered Litz Wire

Name: 008mm 105 Silk Covered Litz Wire
Brand: Rvyuan
Price: 1 USD

Brand Name : Rvyuan

Model Number : 0.08mm*105

Certification : UL/ROHS/ICE/ISO9001/ISO14001

Place of Origin : China

MOQ : 20 Kilogram/Kilograms

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 200 Ton/Tons per Month

Delivery Time : 2-15 days

Packaging Details : Carton

Type : Insulated

Thermal Class : 155

Breakdown voltage : 1500V

Insulation Material : UEW/Ployester

Twist pictch : 20.5

Contact Now

08MM *105 USTC SILK COVERED STRANDED COPPER LITZ WIRE HIGH FREQUENCY INSULATED LITZ WIRE

High frequency litz wire served with natural silk, polyester or nylon is characterized by an increase in mechanical performance and excellent dimensional stability. The precise serving quality guarantees a high degree of flexibility and prevents splicing during the process of cutting the litz wire and therefore allows for optimal contacting.

The size range we can make is 0.03-0.8mm, and strands number is 2-4000.
Benefits:
1. Increased efficiency
2. Mitigation of skin and proximity effect
3. Minimum eddy current losses
4. Lowered operating temperatures
5. Reduced footprint of final product
6. Substantial weight reduction
7. Avoidance of "hot spots"

0.08mm * 105 Silk Covered Litz Wire

Characteristics	Technical requests	Test Results	Conclusion
Inner diameter	0.08±0.003 mm	0.08	OK
Thickness of coating	≥ 0.003mm	0.004	OK
Outer diameter	≤ 0.094 mm	0.088	OK
Twist direction	S/Z	Z	OK
Strands	140	140	OK
Twist Pitch	20.5±3 mm	20.6	OK
Breakdown Voltage	425V	1500V	OK
Conductor Resistance	≤ 36.32Ω/km	34.09	OK
Solder ability	YES	YES	OK
Pin Hole	≤210pcs/5m	6	OK
