0.025mm Ultra Fine Self Bonding Wire Silver Plated Copper Wire

Name: 0025mm Ultra Fine Self Bonding Wire Silver Plated Copper Wire
Brand: Rvyuan
Price: 1 USD

Wholesale 0.025mm Ultra Fine Self Bonding Wire Silver Plated Copper Wire from china suppliers

Brand Name : Rvyuan

Model Number : 0.025mm

Certification : ISO9001/ISO14001 /UL/SGS

Place of Origin : China

MOQ : Different types with differet MOQ

Price : Negotiation

Payment Terms : Negotiation, T/T, L/C

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Conductor DIA : 0.025mm

Standard : IEC/JIC/NEMA

Material : Round Copper

Delivery : Fast Delivery Gurantee

Conductor : aluminum and copper

Thermal Class : 155

Min bonding strength : 2g

Insulation : UEW/polyurethane

Color : Silver/natural/red

Contact Now

0.025MM ULTRA FINE SELF BONDING WIRE SILVER PLATED COPPER WIRE

A special type of enamelled wire is self bonding wire. Self bonding wire is an enamelled wire with an additional adhesive enamel overcoat. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of self bonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.Self bonding wire can be supplied with different conductor materials such as self bonding copper clad aluminum wire, self bonding aluminum wire etc.

0.025mm Ultra Fine Self Bonding Wire Silver Plated Copper Wire

CERTIFICATES: ISO 9001-2000, ISO TS 16949, ISO 14001-2004, UL Approved, RoHS Directive Met

EXECUTIVE STANDARDS: IEC, JIS and NEMA.

APPLICATIONS:

High frequency coils, transformers, touch sreen, relays, small motors, Sensors etc

SPECIFICATION

Self-bonding Enameled Wire
Description	Designation	Thermal Grade(℃)	Diameter(mm)	Feature	Application
Solvent Bonding Polyurethane Enameled Wire (Conductor: copper, copper-clad aluminum)	Y1 Y2 Y3	130~180	0.01~0.5	Directly solderable Excellent bonding strength Suitable for different bonding strength requiements applications Easily dyable,various coloring options:Natural,Red,Green,Blue, Black	Speaker coil(i.e.: microphone, earphone,speaker,hearing aid),micro vibration motor (i.e.: focus-driving,coin-type, coreless-type)and other electrical and electronics components(i.e.: inductor, watch coil,coin machine coil, buzzer),magnetic head,IC card.




Heat Bonding Polyurethane Enameled Wire (Conductor: copper, copper-clad aluminum)	H H1 H2	130~180	0.01~0.5

Product Tags:

self solderable copper wire

flat copper wire

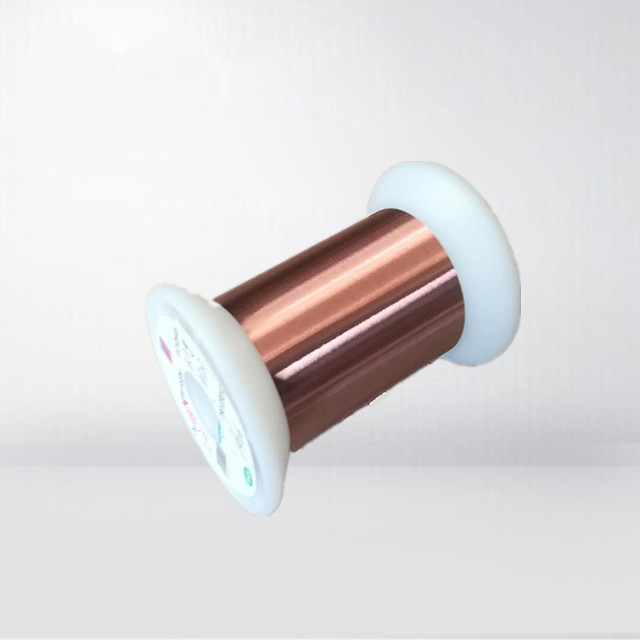

0.025mm Ultra Fine Self Bonding Wire Silver Plated Copper Wire Images
