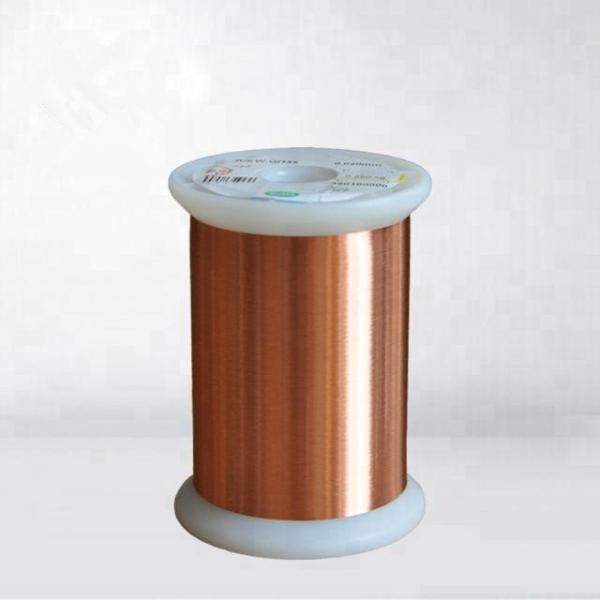

2UEW 155 0.05mm Self Bonding Enamelled Copper Wire Magnet Wire Awg 44 For Winding

Name: 2UEW 155 005mm Self Bonding Enamelled Copper Wire Magnet Wire Awg 44 For Winding
Brand: Rvyuan
Price: 1 USD

Wholesale 2UEW 155 0.05mm Self Bonding Enamelled Copper Wire Magnet Wire Awg 44 For Winding from china suppliers

Brand Name : Rvyuan

Model Number : 0.05mm

Certification : ISO9001/ISO14001/UL/SGS

Place of Origin : China

MOQ : Different types with differet MOQ

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Color : Nature

Standard : IEC/JIS/NEMA

Insulation : Polyurethane

Diameter : 0.05mm/AWG44

Conductor : copper

Solderability : Yes

Bonding method : Hot wind/solvent

OEM : Support

Contact Now

0.05MM SELF BONDING ENAMELED COPPER WIRE MAGNET WIRE AWG4

A special type of enamelled wire is selfbonding wire or bondable wire. Selfbonding wire is an enamelled wire as described under Enamelled Wire Types, with an additional adhesive enamel overcoat. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of selfbonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.Selfbonding wire can be supplied with different conductor materials such as selfbonding copper clad aluminum wire, selfbonding aluminum wire etc.Rvyuan has a variety of selfbonding products, small quantities included, available right from stock. For more information on this please tell us

2UEW 155 0.05mm Self Bonding Enamelled Copper Wire Magnet Wire Awg 44 For Winding

Characteristics	Technical requests	Test Results			Conclusion
Characteristics	Technical requests	Sample 1	Sample 2	Sample 3	Conclusion
Surface	Good	OK	OK	OK	OK
Bare Wire Diameter	0.050±0.002	0.05	0.05	0.05	OK
Coating Thickness	≥ 0.007 mm	0.011	0.011	0.011	OK
Overall Diameter	≤ 0.063 mm	0.061	0.061	0.06	OK
Conductor Resistance	≤ 9.528 Ω/m	8.756	8.863	8.782	OK
Elongation	≥ 12 %	16	17	17	OK
Breakdown Voltage	≥ 400 V	1493	1638	1382	OK
Pinhole Test	≤ 5 hole /5m	0	0	0	OK
Continuity	≤ 60 hole/30m	0	0	0	OK
Test Items	Technical Requests			Results
Adhesive	Coating layer is good			OK
Cut-through	230℃ 2mins no breakdown			OK
Heat Shock	200±5℃/30min no crack			OK
Solder Ability	390± 5℃ 2Sec Smooth			OK
