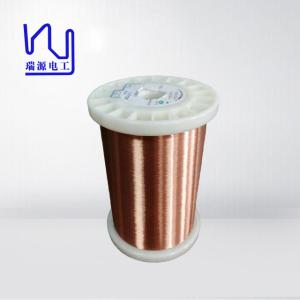

0.3mm 2uew155 Soldering Magnet Wire Polyurethane Enameled Copper

Name: 03mm 2uew155 Soldering Magnet Wire Polyurethane Enameled Copper
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : 0.3mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 20 kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : 2uew155 Polyurethane enameled copper wire high quality

Thermal rating : 155/180

Insulation Material : Amide imide

Diameter : 0.3mm

Conductor material : Copper

Key word : 2uew155 Polyurethane enameled copper wire high quality

Contact Now

2uew155 Polyurethane enameled copper wire high quality

The selection of copper materials and the process of wire drawing are the keys to fine wire drawing. From the material 0.80mm copper wire to 0.011mm, it has to go through several procedures such as middle drawing annealing, small drawing annealing, fine drawing annealing, micro drawing annealing, etc. In order to ensure the softness of the enameled wire, the copper wire cross-sectional area is compressed by 90% every time. Annealed once. The copper wire after drawing must be kept bright, not oxidized and discolored, with oil stains, and can be flat and tightly coiled on the take-up reel. We have stepped up to the step of drawing 0.011mm, and the next step is 0.010mm.

  	 			Name 			2uew155 Polyurethane enameled copper wire high quality
 			Key word 			Enameled copper wire
 			Insulationh 			Enamel
 			Thermal rating 			155/180
 			Diameter of the enameled copper wire 			0.3mm
 			Type 			2uew155 Polyurethane enameled copper wire high quality
    	 			Characteristics
 			Technical requests
 			Test Results
 			Conclusion

 			Sample 1
 			Sample 2

 			Surface
 			Good
 			OK
 			OK
 			OK

 			Conductor Diameter
 			03mm±0.003
 			0.3mm
 			03mm
 			OK

 			Basecoat dimensions
 			Max.0.337mm
 			0.334
 			0.334
 			OK

 			Insulation film thickness
 			Min. 0.011 mm
 			0.016
 			0.016
 			OK

 			Continuity (50V/30M)PCS
 			Max.60
 			0
 			OK

 			Flexibility
 			/
 			/
 			OK

 			Conductor Resistance
 			Max. 248.8 Ω/km
 			241.5
 			241.6
 			OK

 			Elongation
 			≥ 28%
 			31
 			31
 			OK

 			Breakdown Voltage
 			≥ 5000 V
 			6396
 			OK

 			Bonding strength (g)
 			Min. 150
 			230
 			OK

 			Adhesive
 			Coating layer is good
 			OK

 			Solder Ability
 			390± 5℃ 2 Sec Smooth
 			OK



0.3mm 2uew155 Soldering Magnet Wire Polyurethane Enameled Copper

Product Tags:

0.3mm 2uew155 Soldering Magnet Wire Polyurethane Enameled Copper Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Tianjin Ruiyuan Electric Material Co,.Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

0.3mm 2uew155 Soldering Magnet Wire Polyurethane Enameled Copper

0.3mm 2uew155 Soldering Magnet Wire Polyurethane Enameled Copper

uew soldering magnet wire

polyurethane soldering magnet wire

0.3mm copper magnet wire

0.3mm 2uew155 Soldering Magnet Wire Polyurethane Enameled Copper Images

Name	2uew155 Polyurethane enameled copper wire high quality
Key word	Enameled copper wire
Insulationh	Enamel
Thermal rating	155/180
Diameter of the enameled copper wire	0.3mm
Type	2uew155 Polyurethane enameled copper wire high quality

Characteristics	Technical requests	Test Results		Conclusion
Characteristics	Technical requests	Sample 1	Sample 2	Conclusion
Surface	Good	OK	OK	OK
Conductor Diameter	03mm±0.003	0.3mm	03mm	OK
Basecoat dimensions	Max.0.337mm	0.334	0.334	OK
Insulation film thickness	Min. 0.011 mm	0.016	0.016	OK
Continuity (50V/30M)PCS	Max.60	0		OK
Flexibility	/	/		OK
Conductor Resistance	Max. 248.8 Ω/km	241.5	241.6	OK
Elongation	≥ 28%	31	31	OK
Breakdown Voltage	≥ 5000 V	6396		OK
Bonding strength (g)	Min. 150	230		OK
Adhesive	Coating layer is good			OK
Solder Ability	390± 5℃ 2 Sec Smooth			OK
