0.016mm Ultra Fine Enameled Copper Magnet Wire For Touch Screen

  • 1
  • 2

Brand Name : Ruiyuan

Model Number : 0.016mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 5kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 200 Ton/Tons per Month

Delivery Time : 2-15 days

Packaging Details : Carton

Product name : Magnet wire

Size : 0.016mm

Insulation : Polyurethane

Thermal grade : 155 / 180

Conductor material : Copper

Breakdown Voltage : Min. 120V

Contact Now

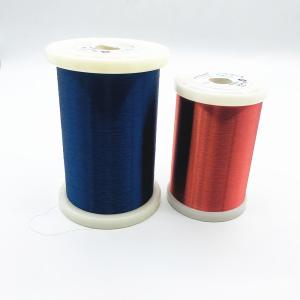

Blue / Red Color 0.016mm Ultra Fine Enameled Copper Wire Magnet Wire For Touch Screen

We are one of the pioneers in producing ultra-fine enameled wires below 0.03mm in China. Our R & D team has 20 years of marketexperience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm,and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with ashare of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materialsWe surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...

0.016mm Ultra Fine Enameled Copper Magnet Wire For Touch Screen

Characteristics Technical requests Test Results Conclusion
Sample 1 Sample 2 Sample 3
1 Surface Good OK OK OK OK
2 Bare Wire Diameter 0.016±0.001 0.016 0.016 0.016 OK
3 Overall diameter ≤ 0.020mm 0.015 0.0195 0.01958 OK
4 Insulation thickness Min0.001 0.002 0.002 0.002 OK
5 Self-bonding layer thickness Min0.001 0.0015 0.0015 0.0015 OK
6 Elongation ≥ 6 % 12 12 12 OK
7 Breakdown Voltage ≥ 1200V 248 260 270 OK
8 Pinhole Test ≤ 5 hole/5m 0 0 0 OK
9 Enamel Continuity(50v/30m) ≤ 60 hole/5m 0 0 0 OK
10 Bonding Strength ≥5 g 10 10 9 OK
11 Electrical Resistance 84.29-91.37Ω/m 86.3 86.3 86.3 OK
Remark:
Test Items Technical Requests Results

Conclusion:

Approved
1 Adhesive No crack OK
2 Heat Shock 175℃/1h no crack OK Audit by Tested by
3 Solder Ability 390℃±5C/2S Smooth OK Pan Lihong
