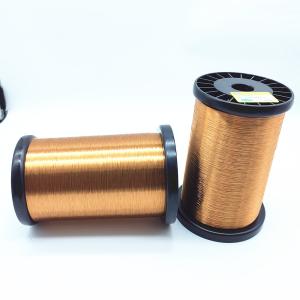

Transformers Winding Magnet Wire 2uew155 0.28mm

Name: Transformers Winding Magnet Wire 2uew155 028mm
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : 0.28mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 20 kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : 2UEW155 0.28mm Enameled Copper Wire Magnetic Winding Wire For Transformers

Thermal rating : 155/180

Insulation Material : Amide imide

Diameter : 0.28mm

Conductor material : Copper

Key word : 2UEW155 0.28mm Enameled Copper Wire Magnetic Winding Wire For Transformers

Contact Now

2UEW155 0.28mm Enameled Copper Wire Magnetic Winding Wire For Transformers

We provide high quality magnet wire with UEW, AIW, EIAIW and PIW insulation, size range from 0.011mm to 2.00mm.

a) High resistance to heat shock.
b) High temperature.
c) Good performance in cut-through.
d) Suitable for high-speed automated routing.
e) Able to be direct weld, with no pinhole.
f) Resistive to high frequency, wearing, refrigerants and electronics corona.
g) High breakdown voltage, small dielectric loss angle.
h) Environment-friendly.

  	 			Name 			2UEW155 0.28mm Enameled Copper Wire Magnetic Winding Wire For Transformers
 			Key word 			Enameled copper wire
 			Insulationh 			Enamel
 			Thermal rating 			155/180
 			Diameter of the enameled copper wire 			0.283mm
 			Type 			2UEW155 0.28mm Enameled Copper Wire Magnetic Winding Wire For Transformers


  	 			Test Items
 			Requirements
 			Test Data

 			1st Sample
 			2nd Sample

 			Appearance
 			Smooth & Clean
 			OK
 			OK

 			Conductor Diameter
 			0.18mm ±0.003mm
 			0.181
 			0.181

 			Thickness of Insulation
 			≥ 0.015 mm
 			0.021
 			0.022

 			Overall Diameter
 			≤ 0.207mm
 			0.202
 			0.203

 			DC Resistance
 			≤ 0.701Ω/m
 			0.6615
 			0.6671

 			Elongation
 			≥ 20%
 			26.1
 			28.6

 			Breakdown Voltage
 			≥2000 V
 			4589
 			4723

 			Pin Hole
 			≤ 5 faults/5m
 			0
 			0

 			Adherence
 			No cracks visible
 			OK
 			OK

 			Cut-through
 			200℃ 2min No breakdown
 			OK
 			OK

 			Heat Shock
 			175±5℃/30min No cracks
 			OK
 			OK

 			Solderability
 			390± 5℃ 2 Sec No slags
 			OK
 			OK



Transformers Winding Magnet Wire 2uew155 0.28mm

Product Tags:

0.28mm winding wire copper

31awg magnet wire

transformers winding magnet wire

Transformers Winding Magnet Wire 2uew155 0.28mm Images
