AWG45 Soldering Enameled Wire Polyurethane 155 Degree

Name: AWG45 Soldering Enameled Wire Polyurethane 155 Degree
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : 45AWG

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 5kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product name : Magnet wire

Diameter : 45AWG

Insulation : Polyurethane

Thermal rating : 155/180

Conductor material : Copper

Size Range : 0.011mm-1.2mm

Contact Now

AWG 45 Polyurethane 155 Degree Enameled Copper Wire Solderable Magnet Wire

Enameled copper wire is a copper coated with a very thin layer of insulation.

Application:

It is used in the construction of transformers,inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.

  Characteristics Technical requests Test Results Conclusion
 Sample 1 Sample2 Sample 3
 Surface Good OK OK OK OK
 Bare wire diameter 0.045±0.001 0.0450 0.0450 0.0450 OK
 Insulation thickness ≥ 0.006 mm 0.0090 0.0090 0.0100 OK
 Overall diameter ≤ 0.056 mm 0.0540 0.0540 0.0550 OK
 Electrical resistance ≤11.339Ω/m 10.710 10.689 10.765 OK
 Elongation ≥ 11 % 20 19 20 OK
 Breakdown voltage ≥350 V 1712 1598 1654 OK
 Pinhole test ≤ 5 hole/5m 0 0 0 OK
 Remark
 Test items Technical requests Results Conclusion
 Adhesive No crack OK Approval
 Cut-through 200℃ 2mins no crack OK
 Heat Shock 175±5℃/30min no crack OK
 Solder Ability 390± 5℃ 2Sec Smooth OK


Product Tags:

awg 45 soldering enameled wire

polyurethane soldering enameled wire

155 degree self bonding magnet wire

Wholesale AWG45 Soldering Enameled Wire Polyurethane 155 Degree from china suppliers

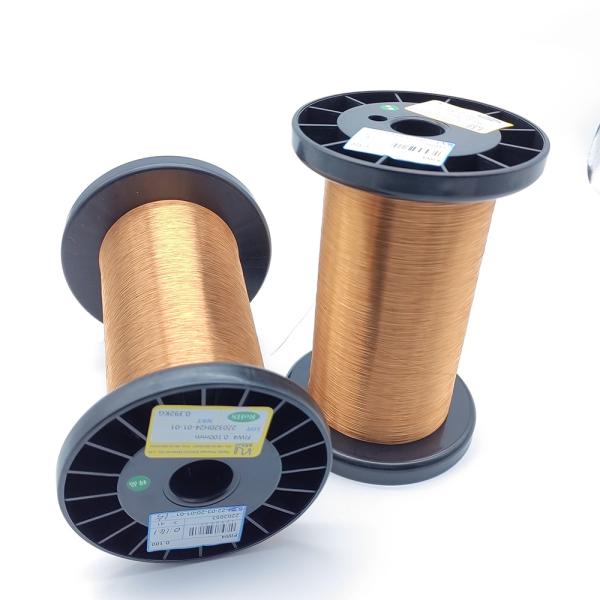

AWG45 Soldering Enameled Wire Polyurethane 155 Degree Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Tianjin Ruiyuan Electric Material Co,.Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Characteristics	Technical requests	Test Results			Conclusion
Characteristics	Technical requests	Sample 1	Sample2	Sample 3	Conclusion
Surface	Good	OK	OK	OK	OK
Bare wire diameter	0.045±0.001	0.0450	0.0450	0.0450	OK
Insulation thickness	≥ 0.006 mm	0.0090	0.0090	0.0100	OK
Overall diameter	≤ 0.056 mm	0.0540	0.0540	0.0550	OK
Electrical resistance	≤11.339Ω/m	10.710	10.689	10.765	OK
Elongation	≥ 11 %	20	19	20	OK
Breakdown voltage	≥350 V	1712	1598	1654	OK
Pinhole test	≤ 5 hole/5m	0	0	0	OK
Remark
Test items	Technical requests	Results	Conclusion
Adhesive	No crack	OK	Approval
Cut-through	200℃ 2mins no crack	OK
Heat Shock	175±5℃/30min no crack	OK
Solder Ability	390± 5℃ 2Sec Smooth	OK
