High Purity Copper Triple Insulated Wire 0.3x7 Strands Enameled Wire 1000 Vrms Rated Voltage

Name: High Purity Copper Triple Insulated Wire 03x7 Strands Enameled Wire 1000 Vrms Rated Voltage
Brand: Rvyuan
Price: 1 USD

Wholesale High Purity Copper Triple Insulated Wire 0.3x7 Strands Enameled Wire 1000 Vrms Rated Voltage from china suppliers

Brand Name : Rvyuan

Model Number : 0.3*7

Certification : IEC/NEMA/JIS/RoHS/ISO

Place of Origin : China

MOQ : Different types with differet MOQ

Price : Negotiation

Payment Terms : Negotiation, T/T, L/C

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

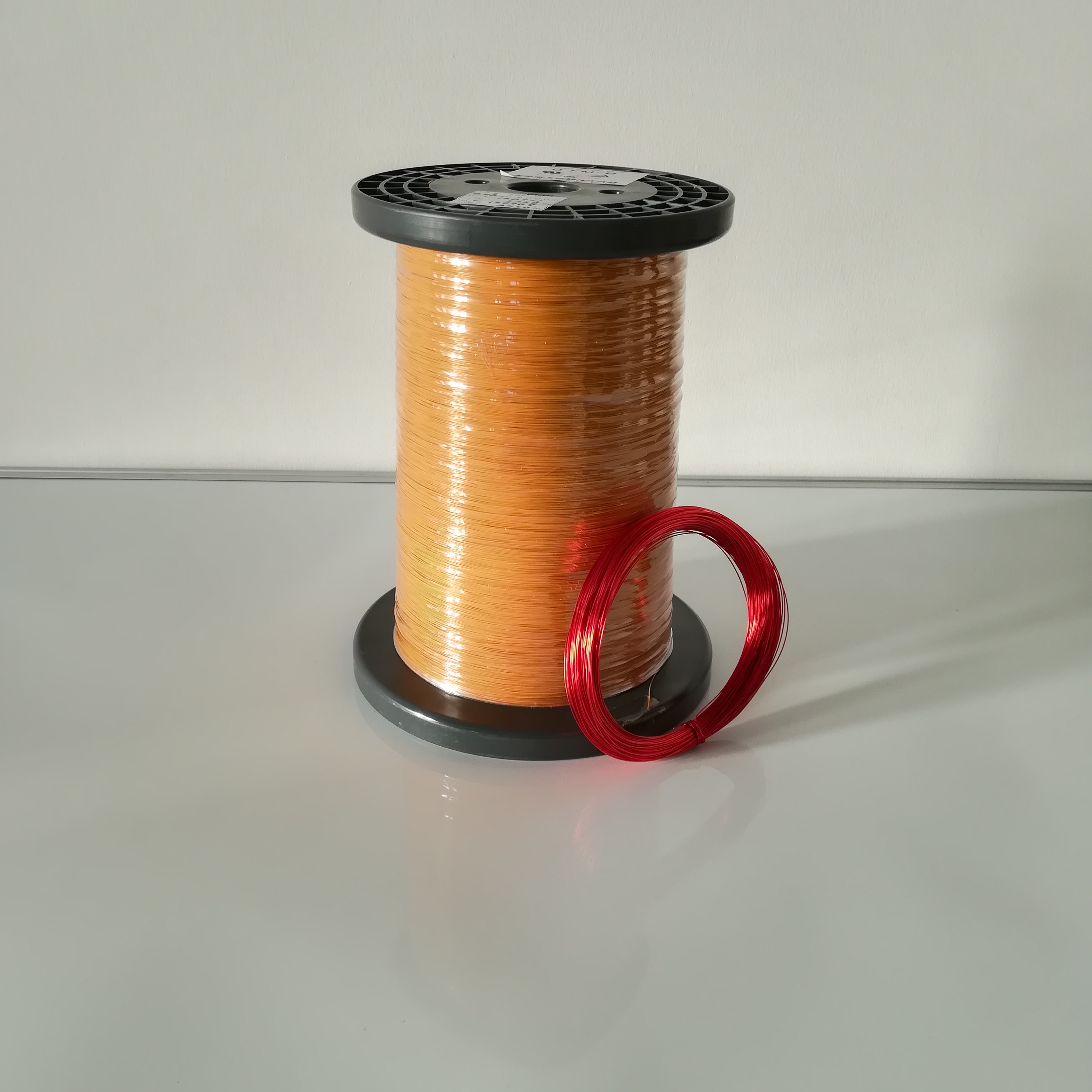

Product name : 0.3x7 triple insulated litz wire

Color : Red/Pink/Blue/Yellow

Size : 0.3*7mm

Packing : Plastic roll then in carton

Rated Temperature : 130

Rated Voltage : 1000 Vrms

Solderability : Directly

Conductor : high purity copper

Contact Now

HIGH PURITY COPPER TRIPLE INSULATED WIRE 0.3*7 STRANDS ENAMELED WIRE 1000 VRMS RATED VOLTAGE

TIW, a unique product for small transformers. Three layer extruded coatings of high performance polymer resins gives excellent dielectric properties to this type of winding wires. Unlike enamelled wires, three layers of insulation are extruded over the copper conductor by an automated manufacturing process ensure perfect central position of conductor. The conventional enamelled wire winding coils requires insulation between the primary and secondary coils by means of barrier tape or inter layer tape, to isolate primary and secondary windings. Since three layers coating is having very high dielectric strength, it has very less creepage factor. This positive feature of TIW serves to downsize switching transformers, and promises high production efficiency and cost reduction. Depending on the design, the transformer size can be reduced up to 40% and weight up to 60% as compared to transformers made up of enamelled wires.

PACKING&DELIVERY

Inner packing: winding wire with plastic spools (PT2-PT200) according to different diameters
Outer packing: Wooden pallet and wooden case or according to customers' special requirement.

Port:Xingang,Shanghai,Zhuhai

FEATURES AND BENEFITS

The integration of a special thin-film conductor into the transformer’s conductor reduces eddy-current losses generated inside the conductor, thereby resulting in low overall losses.
Space saving is achieved due to the high performance of Litz-type wires. Winding wires is easier due to excellent flexibility.
While retaining excellent ease of peeling, which is a major feature of the TIW series, peeling from the conductor is facilitated by the improved specifications of the tape material.
Direct soldering can be done without stripping off the insulation.

APPLICATION

These products demonstrate considerable effects in terms of loss reduction and mitigating temperature rises when used in switching power transformers, which are widely used in industrial and consumer-use equipment.

High Purity Copper Triple Insulated Wire 0.3x7 Strands Enameled Wire 1000 Vrms Rated Voltage

SPECIFICATION

	Characteristics	Test Standard	Conclusion
1	Package	Whether Package condition is good(including carton,spool, PE film, Air bubble film).Whether carton’s seal is complete	OK
2	Bare Wire Diameter	0.30±0.02MM	0.294-0.297
3	Overall Diameter	1.13-1.23MM	1.150-1.157
4	Conductor Resistance	MAX: 41.2Ω/KM	36.60Ω/KM
5	Breakdown voltage of straight wire	The length of wire 305mm,wind on the copper bar, test condition 1mA/60s/6.0KV	OK
6	Breakdown voltage of bending wire	The length of wire 305mm , Test condition:1mA/60S/4.5KV	OK
7	Breakdown voltage of twist wire	The length of wire 125mm , Test condition: 50HZ/1mA/60S/AC10KV	OK
9	Solder ability	430± 5℃ 1-2.5 Secs	OK
Conclusion		Qualified
