Ultra Fine TIW Triple Insulated Wire Magnet Wire 0.13 - 0.4mm For Industrial

Ultra Fine TIW Triple Insulated Wire Magnet Wire 0.13 - 0.4mm For Industrial

The main advantage of the TIW wires is relatively high electric strength of the insulation, with breakdown voltage min. 6kV. Obtaining such a high resistance was possible by the use of a reinforced, three-layer conductor insulation. Third external insulation made of polyamide gives excellent flexibility and high mechanical resistance of the wire. Normally, TIW wires are produced in thermal class B. Fully automated manufacturing process provides a central position of conductor and the same thickness of insulation at any point of the wire.

FEATURES AND BENEFITS

• The integration of a special thin-film conductor into the transformer’s conductor reduces eddy-current losses generated inside the conductor, thereby resulting in low overall losses.

• Space saving is achieved due to the high performance of Litz-type wires. Winding wires is easier due to excellent flexibility.

• While retaining excellent ease of peeling, which is a major feature of the TIW series, peeling from the conductor is facilitated by the improved specifications of the tape material.

• Direct soldering can be done without stripping off the insulation.

CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,UL Approved, RoHS Directive Met

APPLICATIONS

SPECIFICATION

insulated magnet wire

tiw wire

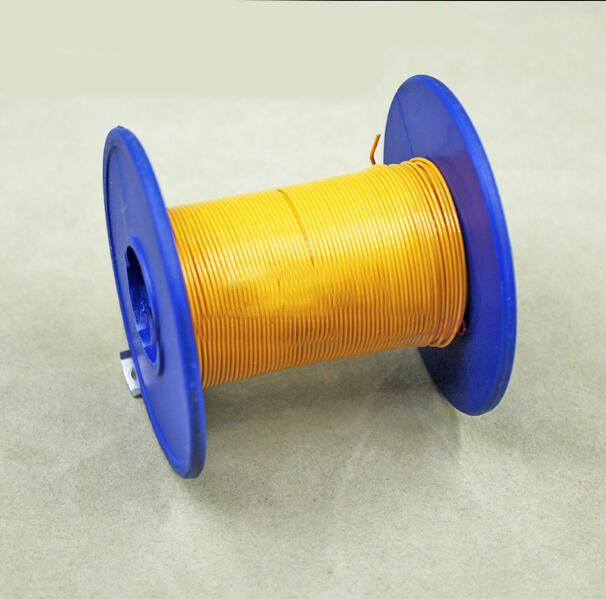

Ultra Fine TIW Triple Insulated Wire Magnet Wire 0.13 - 0.4mm For Industrial Images
