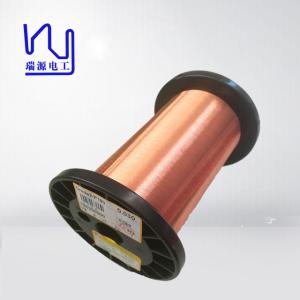

Grade 2 180 0.03mm Uew Enamelled Copper Wire High Purity Coductor

Name: Grade 2 180 003mm Uew Enamelled Copper Wire High Purity Coductor
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : 0.03mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 5 kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : Grade 2 180 0.03mm UL Certificated UEW Enamelled Copper Wire High Purity Copper Coductor

Thermal rating : 155/180

Insulation Material : Polyurethane

Diameter : 0.03mm

Conductor material : Copper

Key word : Grade 2 180 0.03mm UL Certificated UEW Enamelled Copper Wire High Purity Copper Coductor

Contact Now

Grade 2 180 0.03mm UL Certificated UEW Enamelled Copper Wire High Purity Copper Coductor


Description:Polyurethane Enameled copper wire
Designation: UEW 155 /180
Diameter: 0.011mm--0.025mm

 	 			Name
 			Grade 2 180 0.03mm UL Certificated UEW Enamelled Copper Wire High Purity Copper Coductor

 			Key word
 			Enameled copper wire

 			Insulationh
 			Enamel

 			Thermal rating
 			155/180

 			Diameter of the enameled copper wire
 			0.03mm

 			Type
 			Grade 2 180 0.03mm UL Certificated UEW Enamelled Copper Wire High Purity Copper Coductor


 	 			haracteristics
 			Technical requests
 			Test Results
 			Conclusion



 			Sample1


 			Surface
 			Good
 			OK
 			OK

 			Bare Wire Diameter

0.030±0.001

0.03

OK

 			Overall diameter
 			≤ 0.038 mm
 			0.036
 			OK

 			Insulation thickness
 			Min 0.004
 			0.006
 			OK

 			Elongation
 			≥ 10 %
 			23.9
 			OK

 			Breakdown voltage
 			≥ 250 V
 			1161
 			OK

 			Pinbole test
 			≤  8hole/5m
 			0
 			OK

 			Electrical Resistance
 			≤ 26.103Ω/m
 			25.08
 			OK

 			Test items
 			Technical Requests
 			Results
 			Conclusion

 			Adhesive
 			No crack
 			OK
 			Aprroved

 			Heat Shock
 			175℃±5℃/30min no crack
 			OK


 			Solder Ability
 			390℃±5℃/2Sec Smooth
 			OK



Grade 2 180 0.03mm Uew Enamelled Copper Wire High Purity Coductor

Product Tags:

uew enamelled copper wire

self bonding enamelled copper wire

0.03 mm enamelled copper wire

Wholesale Grade 2 180 0.03mm Uew Enamelled Copper Wire High Purity Coductor from china suppliers

Grade 2 180 0.03mm Uew Enamelled Copper Wire High Purity Coductor Images
