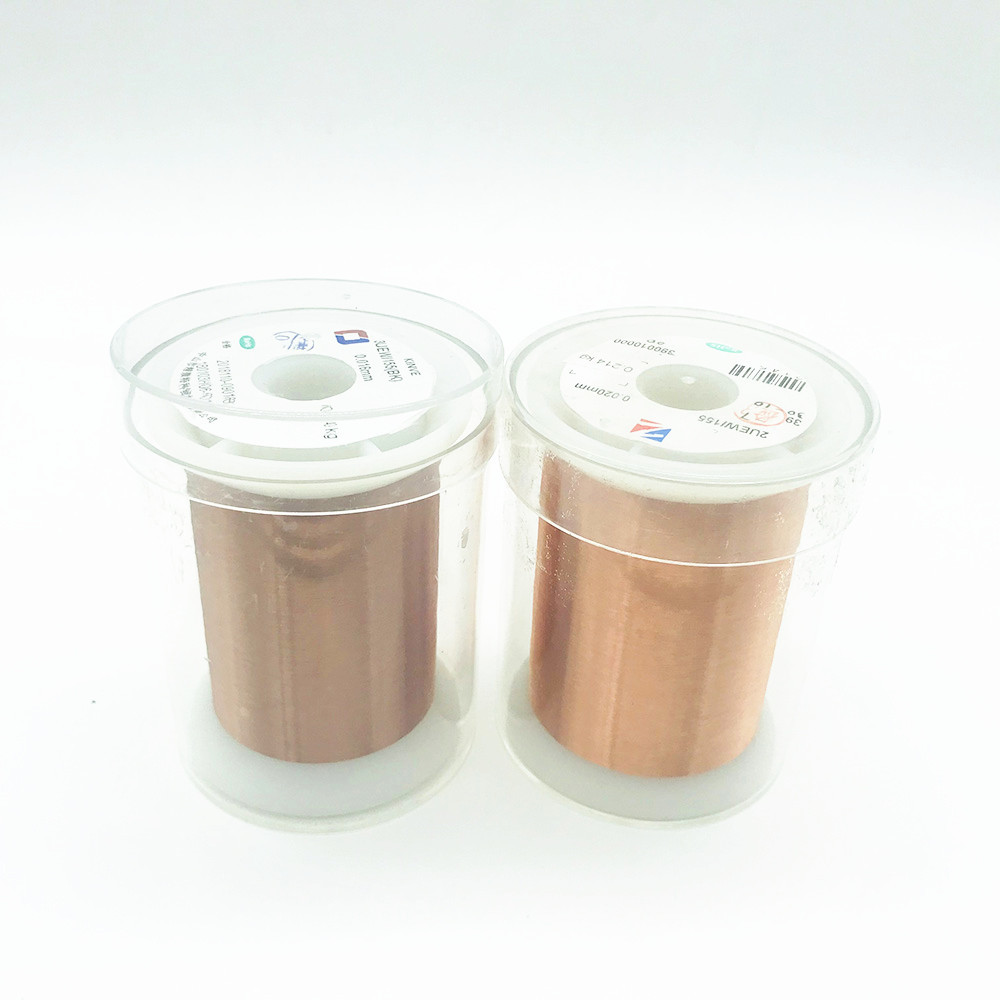

0.032mm Polyurethane Insulated Enamel Coated Wire For Generator

  • 1
  • 2

Brand Name : Ruiyuan

Model Number : 0.032mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 10kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 200 Ton/Tons per Month

Delivery Time : 2-15 days

Packaging Details : Carton

Product name : Enameled copper wire

Insulation : Polyurethane

Size : 0.032mm

Thermal grade : 155 / 180

Conductor material : Copper

Conductor type : Solid

Contact Now

0.032mm Polyurethane Insulated Copper Wire Ultra Thin Enameled Copper Wire For Generator

We are one of the pioneers in producing ultra-fine enameled wires below 0.03mm in China. Our R & D team has 20 years of marketexperience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm,and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with ashare of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materialsWe surpass them in terms of "service, quick response"; 30% lower "price" is our advantage.

0.032mm Polyurethane Insulated Enamel Coated Wire For Generator 0.032mm Polyurethane Insulated Enamel Coated Wire For Generator

Characteristics
 Technical requests
 Test Results Conclusion
Sample 1 Sample 2 Sample 3
Surface Good OK OK OK OK
Bare Wire Diameter
 0.032±
 0.001 0.032
 0.032
 0.032
 OK
0.001
Coating Thickness ≥ 0.005 mm 0.009 0.008 0.008 OK
Overall Diameter ≤ 0.042 mm 0.041 0.04 0.04 OK
Conductor Resistance ≤ 22.843 Ω/m 22.032 22.076 22.716 OK
Elongation ≥ 10 % 14 15 14 OK
Breakdown Voltage ≥ 275 V 1456 1312 1332 OK
Pinhole Test ≤ 5 faults/5m 0 0 0 OK
Continuity ---- ---- ---- ---- ----
Test Items Technical Requests Result
Adhesive Coating layer is good OK
Cut-through 230℃ 2min no breakdown OK
Heat Shock 200± 5℃/30min no crack OK
Solder Ability 390± 5℃ 2Sec Smooth OK
Solvent Resistance No blister, no expansion, no shed OK
