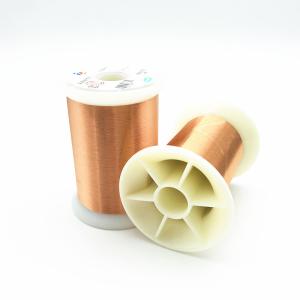

AWG 42 0.063mm Magnet Wire Ultra Fine Enameled Copper Wire For Guitar Pickups
We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage.
APPLICATIONS
speaker coils, voice coils, motors for pagers, relays, microphones, clock coils, hearing aids, pacemakers, measuring instruments, telephones, precision wound coils, appliance motors, ignition coils, motors, solenoids, transformers, timer motors, encapsulated coils, automotive coils.
SPECIFICATIONS
Characteristics
|
Technical requests
|
Test Results |
Conclusion |
| Sample 1 |
Sample 2 |
Sample 3 |
| Surface |
Good |
OK |
OK |
OK |
OK |
| Bare Wire Diameter |
0.063± |
0.002 |
0.063 |
0.063 |
0.063 |
OK |
| 0.002 |
| Coating Thickness |
≥ 0.007 mm |
0.011 |
0.01 |
0.011 |
OK |
| Overall Diameter |
≤ 0.077 mm |
0.074 |
0.073 |
0.074 |
OK |
| Conductor Resistance |
≤ 5.900 Ω/m |
5.478 |
5.512 |
5.482 |
OK |
| Elongation |
≥ 14 % |
21 |
22 |
20 |
OK |
| Breakdown Voltage |
≥ 400 V |
1768 |
1672 |
1723 |
OK |
| Pinhole Test |
≤ 5 holes /5m |
0 |
0 |
0 |
OK |
| Test Items |
Technical Requests |
Results |
|
|
|
| Adhesive |
Coating layer is good |
OK |
|
|
|
| Cut-through |
230℃ 2mins no breakdown |
OK |
|
|
|
| Heat Shock |
200℃±5℃/30min no crack |
OK |
|
|
|
| Solder Ability |
390± 5℃ 2 Sec Smooth |
OK |
|
|
|
| Solvent Resistance |
No blister, no expansion, no shed |
OK |
|
|
|
