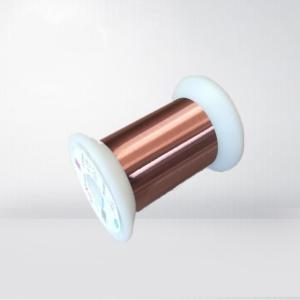

AWG 55 0.013-0.08mm Ultra Fine Enameled Copper Wire Magnet Winding Wire For Motor

Name: AWG 55 0013008mm Ultra Fine Enameled Copper Wire Magnet Winding Wire For Motor
Brand: Rvyuan
Price: 1 USD

Wholesale AWG 55 0.013-0.08mm Ultra Fine Enameled Copper Wire Magnet Winding Wire For Motor from china suppliers

Brand Name : Rvyuan

Model Number : 0.013-0.08mm

Certification : IEC/NEMA/JIS/RoHS/ISO

Place of Origin : China

MOQ : Different types with differet MOQ

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Standard : UL/IEC/JIS

Tempeature : 155/180

Insulation : UEW

Conductor material : Copper

Diameter : 0.013mm

Contact Now

AWG 55 0.013-0.08mm ULTRA FINE ENAMELED COPPER WIRE MAGNET WINDING WIRE FOR MOTOR

We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...

Nominal Diameter mm	Min. Increase of Diameter	Max. Overall Diameter	Breakdown Voltage(≥ V)
0.012	0.013	0.015	50.000
0.013	0.015	0.017	70.000
0.014	0.016	0.018	70.000
0.015	0.017	0.020	80.000
0.016	0.018	0.021	90.000
0.017	0.019	0.022	90.000
0.018	0.020	0.023	100.000
0.019	0.021	0.024	100.000
0.020	0.022	0.024	100.000
