0.02MM SOLDERABLE RECTANGULAR COPPER WIRE SUPER THIN ENAMLED MAGNET WINDIGN WIRE
Rectangular or square wire is made from base copper with rectangular or square shape, it has high advantages compare with round wire, and applied in many field.With the development of technology, electric devices, including laptop computers, mobiles and more, are becoming smaller and compact these days. Along with the trend, coils that are used inside of the devices are required to be compact and more powerful to save the space.
Our rectangular wire will be the best solution to satisfy those needs.
CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met
Executive standards: IEC, JIS and NEMA.
FEATURES AND BENEFITS
1. High space factor. Higher density of conductor makes component smaller or makes component with high efficiency, save material cost.
2. The coil made from rectangular wire has better cooling efficiency.
3. Rectangular wire can be wound with different mode.
4. The coil can be better shape, flat and smooth.
APPLICATION
Motor, transformer, moving coil, plate mount coil, inverter, inductor, speaker, projector, valve
| Product | Class | Solderable | Self bonding | Product Range |
| Width(mm) | Thickness(mm) | Width-Thickness Ratio |
| AIWJ | 220℃ | x | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
| EI/AIWJ | 220℃ | x | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
| EI/AIWJ | 200℃ | x | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
| UEWJ | 180℃ | 0 | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
| EIWJ | 180℃ | x | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
| SEIWJ | 180℃ | 0 | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
| UEWJ | 155℃ | 0 | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
| UEWJ | 130℃ | 0 | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
| EI/SBWJ | 180℃ | x | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
| SEI/SBWJ | 180℃ | 0 | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
| EI/AI/SBWJ | 220℃ | x | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
| AI/SBWJ | 220℃ | x | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
| UE/SBWJ | 180℃ | 0 | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
| UE/SBWJ | 155℃ | 0 | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
| UE/SBWJ | 130℃ | 0 | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
Product Tags:
|
|

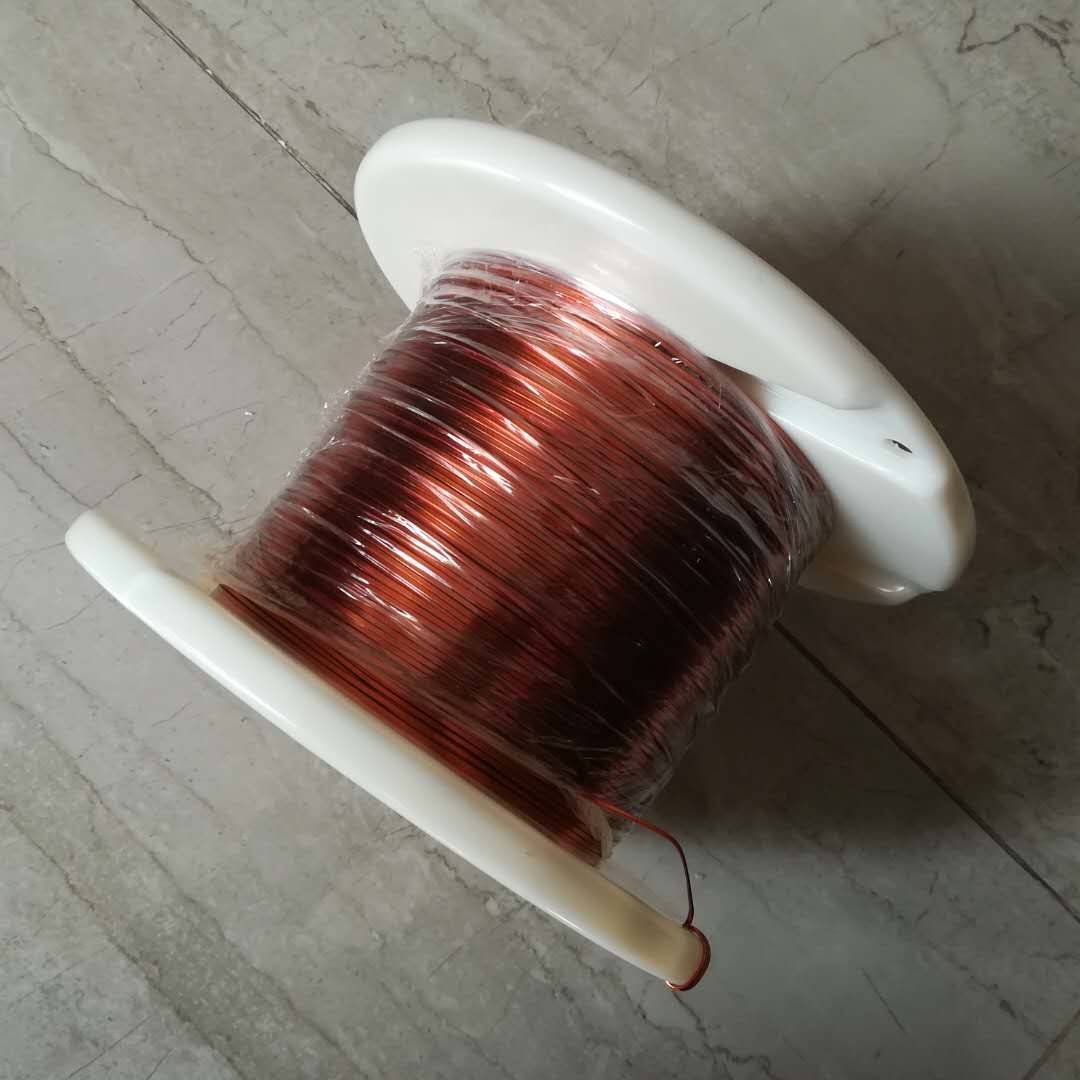

0.02mm Solderable Rectangular Copper Wire Super Thin Enamelled Magnet Winding Wire Images
|
