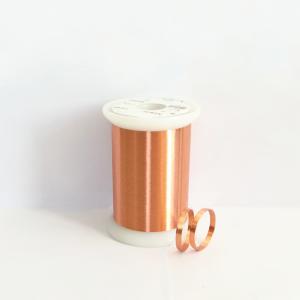

G2 0.05mm Superfine Enameled Copper Wire For Transformer IEC 60317

Name: G2 005mm Superfine Enameled Copper Wire For Transformer IEC 60317
Brand: Rvyuan
Price: 1 USD

Wholesale G2 0.05mm Superfine Enameled Copper Wire For Transformer IEC 60317 from china suppliers

Brand Name : Rvyuan

Model Number : 0.05

Certification : IEC/NEMA/JIS/RoHS/ISO

Place of Origin : China

MOQ : Different types with differet MOQ

Price : Negotiation

Payment Terms : Negotiation, T/T, L/C

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Insulation : UEW

Size : AWG 44

Metric size : 0.05MM

Certificate : ROHS/UL/SGS/ISO9001:2008

Color : Nature

Material : Copper

Thermal Class : 155

Stock : Available

Contact Now

G2 0.05MM SUPERFINE ENAMELED COPPER WIRE FOR TRANSFORMER 60317

We are the producer of fine and ultrafine enamelled copper wire (winding wire). It is produced and delivered corresponding to the industry standards IEC 60317, NEMA MW1000, JIS C3202 or to customer specific requirements. Besides enamelled copper wire Elektrisola produces enamelled wire made from many other metals as well as selfbonding wire and litz wire.We also can produce the wire according to your request, because sometimes the standard is too wide. The thickness of insulation and other paremeter can be modified.

G2 0.05mm Superfine Enameled Copper Wire For Transformer IEC 60317

	Characteristics			Technical requests		Test Results					Conclusion
						Sample 1		Sample 2		Sample 3
1	Surface			Good		OK		OK		OK	OK
2	Bare Wire Diameter			0.050±	0.002	0.0510		0.0510		0.0510	OK
					0.002
3	Coating Thickness			≥ 0.011 mm		0.0130		0.0125		0.0130	OK
4	Diameter Range			0.061-0.066mm		0.0640		0.0635		0.0640	OK
5	Conductor Resistance			7.922-9.489Ω/m		8.277		8.267		8.274	OK
6	Elongation			≥ 12 %		26.9%		26.9%		28.2%	OK
7	Breakdown Voltage			≥ 1800 V		2738		3052		2840	OK
8	Pinhole Test			≤ 3 hole/5m		0		0		0	OK
9	Enamel continuity			≤ 24 hole/5m		0		0		0s	OK
Remark:
		Test Items	Technical Requests				Results		Conclusion: Approved
1		Adhesive	Coating layer is good				OK
2		Cut-through	200℃ 2mins no breakdown				OK
3		Heat Shock	175±5℃/30min no crack				OK
4		Solder Ability	390± 5℃ 2 Sec Smooth				OK
5		Solvent Resistance	No blister, no expansion, no shed				OK

G2 0.05mm Superfine Enameled Copper Wire For Transformer IEC 60317
