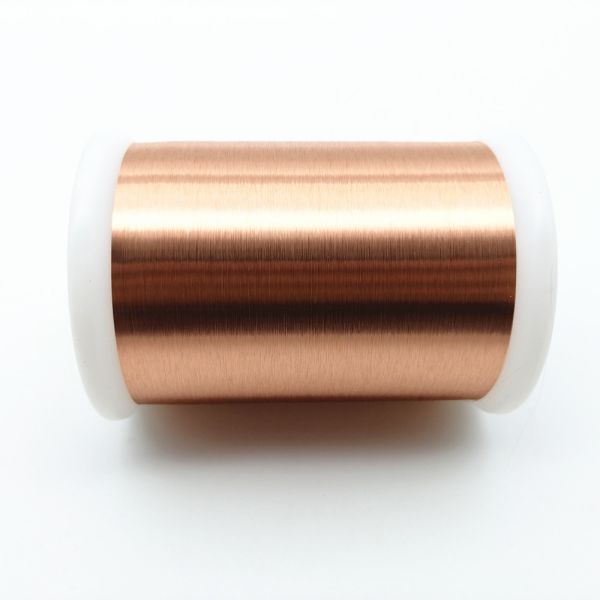

0.025mm Class 155 Enamelled Copper Wire Solderable Polyurethane Insulation

Name: 0025mm Class 155 Enamelled Copper Wire Solderable Polyurethane Insulation
Brand: Rvyuan
Price: 1 USD

Brand Name : Rvyuan

Model Number : UEW

Certification : ISO9001/ISO14001/UL/SGS

Place of Origin : China

MOQ : 5kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Name : 0.025mm Class 155 Solderable Polyurethane Insulation Enameled Copper Wire

Color : Red/Green/Normal

Diameter : 0.025mm

Standard : GB/T5013.3/IEC60245-3:1994

Conductor : Copper

Insulation : Polyurethane

Rated Temperature : 155/180

Key word : Enameled copper wire

Contact Now

0.025mm Class 155 Solderable Polyurethane Insulation Enameled Copper Wire

50awg enameled copper wire is uesed for various type of motor windings, with or without self bonding layer are available. Polyurethane coating, thermal grade 155/180.the enameled copper wire is widely used in transformer, motor and other electric devices.We offer samples of enameled copper wire, also with self bonding layer, hot wind and solvent. around 5-10kg/spool. The insulation of the enameled copper wire is polyurethane.

Name	0.025mm Class 155 Solderable Polyurethane Insulation Enameled Copper Wire
Key word	Enameled copper wire
Insulation	Polyurethane
Thermal rating	155degree
Diameter of the enameled copper wire	0.02mm
Type	Enameled copper wire

ype" 3UEW 155 0.025mm
Characteristics	Technical requests	Test Results
Characteristics	Technical requests	Sample 1	Sample 2
Appearance	Smooth&Clean	OK	OK
Conductor Diameter	0.025±0.001mm	0.0250	0.0250
Thickness of insulation	≥ 0.003 mm	0.0050	0.0040
Overall Diameter	≤ 0.032 mm	0.0300	0.0290
DC Resistance	≤ 38.112 Ω/m	35.523	35.489
Elongation	≥9%	15	13
Breakdown Voltage	≥ 190 V	551	399
Pinhole Test	≤8 hole/5m	0	1
Adherence	No cracks visible	OK	OK
Cut- through	200℃ 2min No breakdown	OK	OK
Heat Shock	175±5℃/30min no cracks	OK	OK
Solderability	390± 5℃ 2 Sec No slags	OK	OK

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
