57 Awg 2uew155 Enamel Coated Wire Super Thin Winding

Name: 57 Awg 2uew155 Enamel Coated Wire Super Thin Winding
Brand: Rvyuan
Price: 1 USD

Brand Name : Rvyuan

Model Number : UEW

Certification : ISO9001/ISO14001/UL/SGS

Place of Origin : China

MOQ : 0.5kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Name : Polyurethane 0.011mm Class F 155 Super Thin Magnet Wire Enameled Copper Wire

Color : Red/Green/Normal

Diameter : 0.011m

Standard : GB/T5013.3/IEC60245-3:1994

Conductor : Copper

Insulation : Polyurethane

Rated Temperature : 155/180

Key word : Enameled copper wire

Contact Now

57 AWG 2UEW155 Super Thin Winding Wire Enameled Copper Wire

In 2019, our finest diameter of enameled copper wire is 0.011mm, and mass production has been achieved.

The enameled copper wire can be used for Relays, Micro-motors, Mini- transformers, Ignition coils, Water valves, Magnetic heads, Coils for telecommunication equipment.

Name	57 AWG 2UEW155 Super Thin Winding Wire Enameled Copper Wire
Key word	Enameled copper wire
Insulation	Polyurethane
Thermal rating	155degree
Diameter of the enameled copper wire	0.025mm
Type	Enameled copper wire

Characteristics	Technical requests	Test Results
Characteristics	Technical requests	Sample 1	Sample 2
Surface	Good	OK	OK
Bare Wire Diameter	0.011±0.001	0.011	0.011
Coating Thickness	≥ 0.002 mm	0.024	0.024
Overall Diameter	≤ 0.0135mm	0.0134	0.0134
Conductor Resistance(Ω/m at 20℃)	154150-157.6	154.01	154.98
Elongation	≥ 3 %	10	10
Breakdown Voltage	≥ 250 V	483
Continuity(50V/30m)	Max.60	0
Adhesive	Coating layer is good	OK
Cut-through	170℃ 2 times no breakdown	OK
Solder Ability	375± 5℃ 2Sec Smooth	OK

Reviews

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

57 Awg 2uew155 Enamel Coated Wire Super Thin Winding

Product Tags:

57 awg enamel coated wire

super thin enamel coated wire

enamelled copper wire super thin

Wholesale 57 Awg 2uew155 Enamel Coated Wire Super Thin Winding from china suppliers

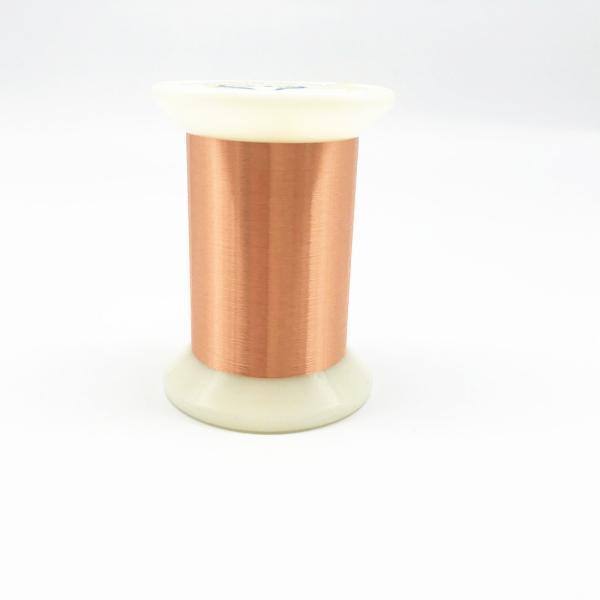

57 Awg 2uew155 Enamel Coated Wire Super Thin Winding Images
