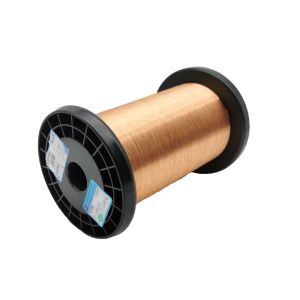

UEW Insulation 0.35mm Class 155 Winding Enameled Copper Wire

  • 1
  • 2

Brand Name : Rvyuan

Model Number : UEW

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 20 Kilogram/Kilograms

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 200 Ton/Tons per Month

Delivery Time : 2-15 days

Packaging Details : Carton

Conductor material : Copper

Conductor type : Solid

Diameter : 0.35mm

Insulation : UEW

Thermal class : 155

Port : Tianjin

Contact Now

0.35mm Class 155 Winding Wire Enameled Copper Wire

We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...

Advantages Of Enameled Copper Wire

  1. a) High resistance to heat shock.

  2. b) High temperature.

  3. c) Good performance in cut-through.

  4. d) Suitable for high-speed automated routing.

  5. e) Able to be direct weld, with no pinhole.

  6. f) Resistive to high frequency, wearing, refrigerants and electronics corona.

  7. g) High breakdown voltage, small dielectric loss angle.

  8. h) Environment-friendly.

  10. Test report

  11. Test Items
    Requirements
    Test Data
    Result
    1st Sample
    2nd Sample
    3rd Sample
    Appearance
    Smooth & Clean
    OK
    OK
    OK
    OK
    Conductor Diameter
    0.35mm ±
    0.004mm
    0.351
    0.351
    0.351
    OK
    0.004mm
    Thickness of Insulation
    ≥0.023 mm
    0.031
    0.033
    0.032
    OK
    Overall Diameter
    ≤ 0.387 mm
    0.382
    0.384
    0.383
    OK
    DC Resistance
    ≤ 0.1834Ω/m
    0.1798
    0.1812
    0.1806
    OK
    Elongation
    ≥23%
    28
    30
    29
    OK
    Breakdown Voltage
    ≥2700V
    5199
    5543
    5365
    OK
    Pin Hole
    ≤ 5 faults/5m
    0
    0
    0
    OK
    Adherence
    No cracks visible
    OK
    OK
    OK
    OK
    Cut-through
    200℃ 2min No breakdown
    OK
    OK
    OK
    OK
    Heat Shock
    175±5℃/30min No cracks
    OK
    OK
    OK
    OK
    Solderability
    390± 5℃ 2 Sec No slags
    OK
    OK
    OK
    OK
    Insulation Continuity
    ≤ 25 faults/30m
    0
    0
    0
    OK
