0.18mm Polyurethane Transformer Enamelled Copper Wire

Name: 018mm Polyurethane Transformer Enamelled Copper Wire
Brand: Ruiyuan
Price: 1 USD

Wholesale 0.18mm Polyurethane Transformer Enamelled Copper Wire from china suppliers

Brand Name : Ruiyuan

Model Number : 0.13mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 20 Kilogram/Kilograms

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 200 Ton/Tons per Month

Delivery Time : 2-15 days

Packaging Details : Carton

Conductor material : Copper

Conductor type : Solid

Diameter : 0.13mm

Insulation : UEW

Thermal class : 180

Port : Tianjin

Contact Now

0.18mm Polyurethane Winding Wire Enameled Copper Wire

We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...

Advantages Of Enameled Copper Wire

a) High resistance to heat shock.
b) High temperature.
c) Good performance in cut-through.
d) Suitable for high-speed automated routing.
e) Able to be direct weld, with no pinhole.
f) Resistive to high frequency, wearing, refrigerants and electronics corona.
g) High breakdown voltage, small dielectric loss angle.
h) Environment-friendly.

Specification

Characteristics	Technical requests		Test Results
Characteristics	Technical requests		Sample 1	Sample 2	Sample 3
Conductor Diameter	0.180±	0.003	0.18	0.18	0.18
Conductor Diameter	0.180±	0.003	0.18	0.18	0.18
Insulation File	≥ 0.014 mm		0.019	0.018	0.019
Overall dimensions	≤ 0.204 mm		0.199	0.198	0.199
Electrical Resistance(20℃)	≤ 0.7007 Ω/m		0.6835	0.6843	0.6812
Elongation	≥ 22 %		25	25	26
Breakdown Voltage	≥ 2000 V		3286	2763	4533
Pinhole Test	≤ 5 holes/5m		0	0	0
Continuity	≤ 25 holes/30m		0	0	0
Adhesive	No crack
Solder Ability	Solder Ability
Heat Shock	200±5℃/30min no crack
Test Result	OK		Conclusion		Approved

Product Tags:

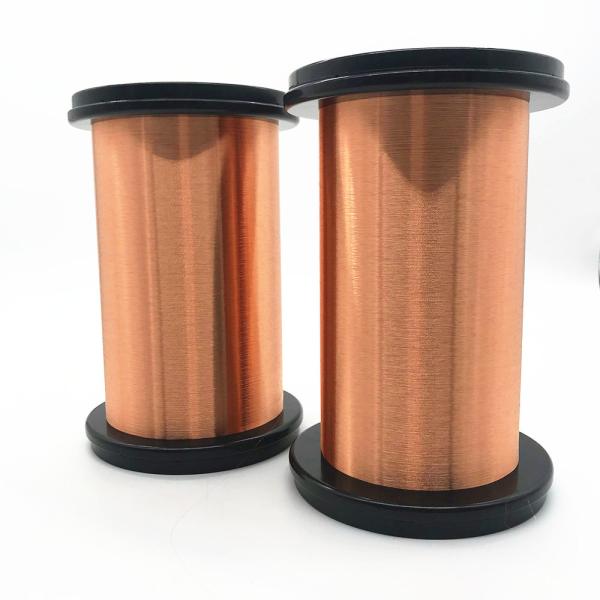

0.18mm Polyurethane Transformer Enamelled Copper Wire Images
