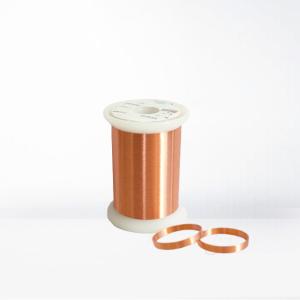

0.012 - 0.8mm Super Fine Enameled Magnet Copper Wire Round Copper Wire For Motors

Name: 0012 08mm Super Fine Enameled Magnet Copper Wire Round Copper Wire For Motors
Brand: Rvyuan
Price: 1 USD

Wholesale 0.012 - 0.8mm Super Fine Enameled Magnet Copper Wire Round Copper Wire For Motors from china suppliers

Brand Name : Rvyuan

Model Number : 0.012-0.8mm

Certification : IEC/NEMA/JIS/RoHS/ISO

Place of Origin : China

MOQ : Different types with differet MOQ

Price : Negotiation

Payment Terms : Negotiation, T/T, L/C

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

AWG : 0.012-0.80

Thermal rating : 130/150/180

Application : motor winding wire

Insulation material : Enameled

Stock : Available

Conductor : Solid Copper

Insulation : Ployester

Contact Now

0.012 - 0.8MM SUPER FINE ENAMELED MAGNET COPPER WIRE ROUND COPPER WIRE FOR MOTORS

Magnet wire plays a critical role in three areas of energy transformation: electrical to electrical, electrical to mechanical, and mechanical to electrical.Electrical to electrical transformation involves transformers, which are used to transfer power. Transformers are used for power generation by utility companies, for power voltage conversion, and in electrical controls in industrial and home uses.Electrical to mechanical transfer is necessary for motorized appliances, automobiles, industrial machinery, and residential and commercial HVAC systems. Magnet wire is a key component in each of these applications.Mechanical to electrical transformation occurs when machine power is converted into electricity. This type of transformation includes generators, which turn mechanical power into electrical energy through the use of magnet wire.

APPLICATION

Transformer, inductors, motors, speakers, hard disk head actuators, electromagnets and other applications that require tight coils of insulated wire.

0.012 - 0.8mm Super Fine Enameled Magnet Copper Wire Round Copper Wire For Motors

SPECIFICATION

Parameter	SM-130	SMG-155	SMY-180	S(MY/MY)-200	SQ-120	SY-240
Standars	GB/T6109.7 GB/T23312.3	60317-12 GB/T6109.2 GB/T23312.4	MW 30 60317-8 GB/T6109.5 GB/T23312.5	MW 35 60317-13 BS6811 GB/T6109.20 GB/T23312.7	MW 15 60317-12 GB/T6109.3 GB/T23312.2	MW 16 60317-46 GB/T6109.22
Thermal Class	130°C	155°C	180°C	200°C	120°C	240°C
Enamel Base Coat	Polyester	Modified Polyester	Polyester-Imide	Polyester-Imide	Polyester-formal	Polyimide
Enamel Top Coat				Polyester-Imide
Cross Section Range	0.1-6.5mm
Range of insulation thickness	IEC60317-0-1 GB6108.2-85
Performance	1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property	1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property 5.Higher thermal property	1.High thermal resistance 2.Suitable for windings that are subjected to constantly high temperature and mechanical stress 3.Good chemical resistance	1.Excellent thermal resistance 2.Suitable for windings that are subjected to constantly high temperature and mechanical stress 3.Good chemical resistance 4.Good resistance to refrigerant and freon	1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property	1.Excellent thermal resistance suitable for any electric equipments that are constantly exposed to high working temperature 2.Outstanding mechanical and chemical property 3.Good performance against radiation
Application	1.Dry and oil-immersed 2.Electrical equipment	1.Dry and oil-immersed 2.Electrical equipment	1.Windings of high and low voltage DC/AC motor 2.Magnet coil 3.Dry and oil-immersed transformer	1.Windings of high and low voltage DC/AC motor 2.Magnet coil 3.Dry and oil-immersed transformer 4.Automobile coil 5.Train coil	1.Dry and oil-immersed transformer 2.Electrical equipment	1.Windings with service temperature up to 220°C 2.Motor and generator for aviation and marine application 3.Nuclear industry 4.Windings requiring high reliability
Heat shock	155°C	175°C	200°C	220°C	155°C	300°
