2uew 180 0.14mm Enameled Copper Winding Wire Round For Transformer

Name: 2uew 180 014mm Enameled Copper Winding Wire Round For Transformer
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : 0.14mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 5 kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : 2UEW 180 0.14mm round enameled copper winding wire for transformer

Thermal rating : 155/180

Insulation Material : Polyurethane

Diameter : 0.14mm

Conductor material : Copper

Key word : 2UEW 180 0.14mm round enameled copper winding wire for transformer

Contact Now

2UEW 180 0.14mm round enameled copper winding wire for transformer

Enameled copper wire is a commonly used wire material. Its core is copper wire as a conductor, and polyurethane paint is used as a protective layer around it. Enameled wire has the properties of insulation and high temperature resistance, and is widely used in various fields.

Item	Requirements	Test Data
		Sample 1	Sample 2	Sample 3
Conductor diameter(mm)	0.140±0.004mm	0.140	0.140	0.140
Coating thickness	≥ 0.011mm	0.0150	0.0160	0.0150
Overall dimention(mm)	≤0.159mm	0.1550	0.1560	0.1550
DC Resistance	≤1.153Ω/m	1.085	1.073	1.103
Elongation	≥19%	24	25	24
Breakdown Voltage	≥1600V	3163	3215	3163
Pinhole	≤5(faults)/5m	0	0	0
Cut-through	200℃ 2min No breakdown	ok
Heat Shock	175±5℃/30min No cracks	ok
Solderability	390± 5℃ 2 Sec No slags	ok

  	 			Name
 			2UEW 180 0.14mm round enameled copper winding wire for transformer

 			Key word
 			Enameled copper wire

 			Insulation
 			Enamel

 			Thermal rating
 			155/180

 			Diameter
 			0.14mm

 			Type
 			2UEW 180 0.14mm round enameled copper winding wire for transformer



2uew 180 0.14mm Enameled Copper Winding Wire Round For Transformer

Product Tags:

2uew enameled copper winding wire

0.14mm enameled copper winding wire

ultra fine enamel coil wire

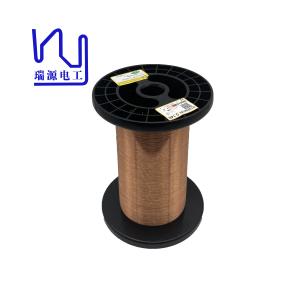

2uew 180 0.14mm Enameled Copper Winding Wire Round For Transformer Images
